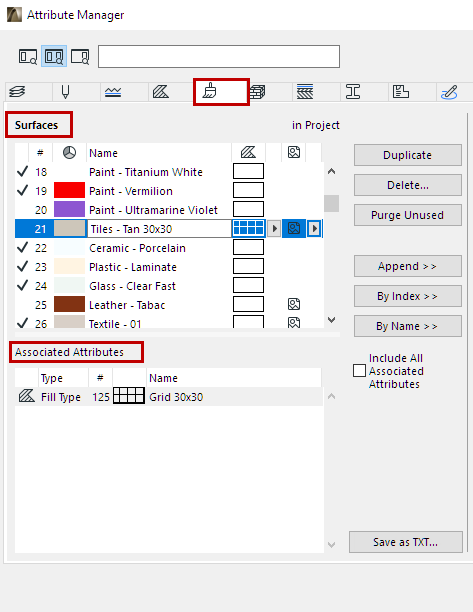

Surfaces (Attribute Manager)

(Parent topic: Attribute Manager: Editable Attribute Parameters)

•Color: Double-click the Color swatch to edit (multi-select available).

•Edit Name (single selection only)

•Fill Type: Click the pop-up arrow to assign the vectorial hatch (Fill Type)

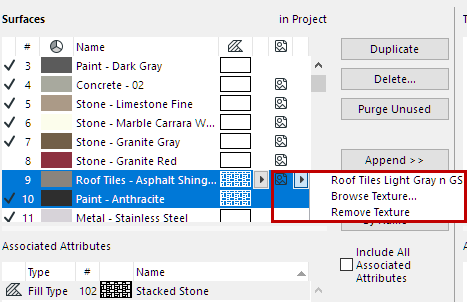

•Texture: Click the pop-up arrow to see the name of the assigned Texture, to remove it, or to browse for a different one (Remove command is available in multi-select)

Associated Attributes of a selected Surface:

•Vectorial hatch of the Surface

Notes:

–The project must contain at least one Surface.

–Surfaces support Delete and Replace. See Delete and Replace Attributes in a Model.
