Openings

Use the Opening Tool to place an Opening element in a Wall, Slab, Mesh, or Beam.

An Opening is a hole that provides space for engineering items such as elevators and MEP elements. A limited-depth Opening can be defined, e.g. to create a Wall niche or Slab recess.

Every ARCHICAD Opening is associated to an element: Wall, Slab, Mesh or Beam. The Opening’s position is relative to that associated element, and moves along with it.

A single Opening can cut multiple elements at once. For example, a suspended ceiling modeled from three separate elements can be cut by a single Opening.

Like any other model element, each Opening has ID, Classification, and Property data. Schedule and Label these values as needed.

Set the show/hide status of Openings using Model View Options (similar to Door/Window).

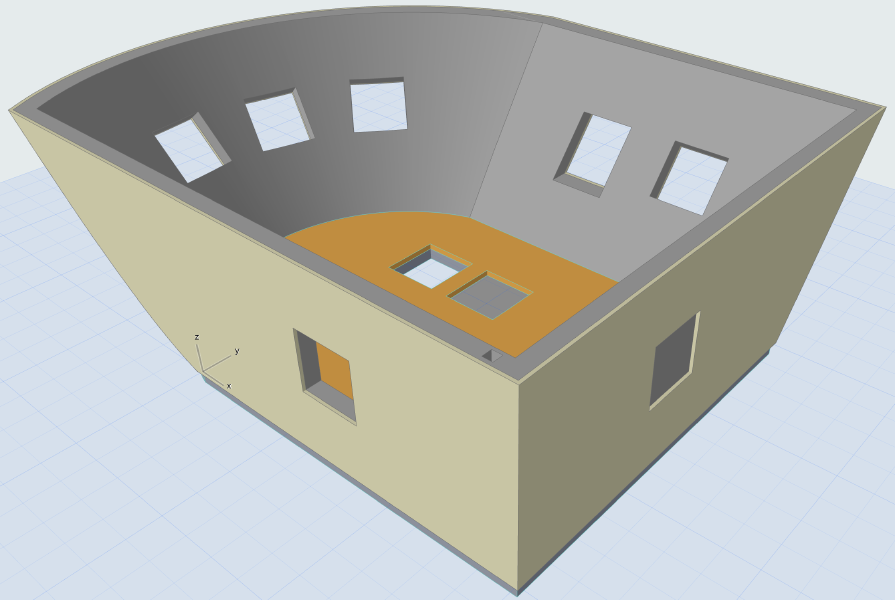

OpeningToolIcon.png   opening_alignments.png
