The Detail tool is used to generate a Detail drawing viewpoint from the model by placing a Detail marker in any of the following windows: Floor Plan; Section; Elevation; Interior Elevation; 3D Document; Worksheet; Detail window. It is also used to place linked Detail markers, as a reference to any viewpoint, view or drawing.
The Detail Marker (a GDL object) is displayed according to the settings you made in the Detail Settings dialog box. You can also create an independent Detail drawing, with or without a marker.

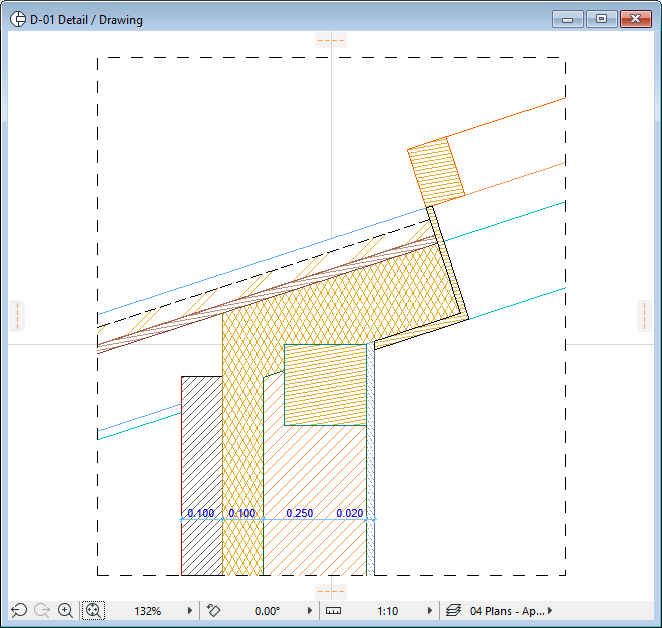

Detail viewpoints are displayed in a dedicated Detail Drawing Window and listed in Navigator Project Map.
Detail viewpoints generated from existing elements in the project are 2D-only copies of these elements. The viewpoints can be updated to reflect changes in the plan. You can add additional 2D elements, text, labels and objects to a Detail Drawing.
You may wish to fine-tune the Detail Drawing before final output. You will find, however, that the “exploded” 2D elements generated from the model often contain superfluous elements (extra line segments, overlapping or superfluous fills) that make such editing difficult. To make editing easier, first use the Linework and Fill Consolidation functions on selected items in the window.
For more information, see Consolidate Lines and Fills in Drawing Windows.
To open the Detail Drawing in its own window, double-click the detail view name in the Navigator.
