Curtain Wall Junction Listing Parameters

Parameter

Short Description

Long Description

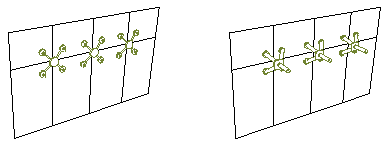

Junction Class

System or Custom.

Junctions from the "System" class use the settings at the Curtain Wall System Settings level.

Junctions from the "Custom" class have been individually customized using Junction Settings, accessible through Curtain Wall Edit Mode.


Junction Type

Name of the Junction Type

Defined at Junction Type in Curtain Wall Settings - Junctions page.
