Curtain Wall Panel Listing Parameters
Parameter |
Short Description |
Long Description |
|
Abbreviation of Orientation |
Facing direction of the panel (using abbreviation). |
|
|

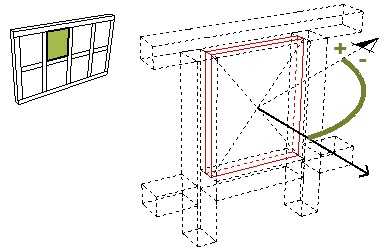

Angle from North |
Facing direction of the panel, in degrees measured from North. |
|
|
Curtain Wall Panel Slant Angle |
Slant of the Curtain Wall Panel. |
Equals the slant of the Curtain Wall |
|
Edge Surface |
Surface of the Panel edge as defined in the Model Panel of CW Panel Settings. |
For panels which are GDL Objects, the surface is defined in its GDL script. |
|

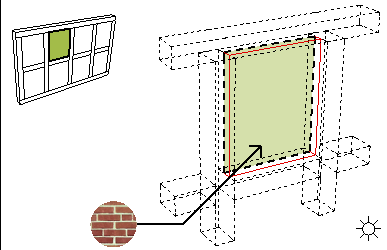

Inside Surface |
Panel's inside surface as defined in the Model Panel of CW Panel Settings. |
For panels which are GDL Objects, the surface is defined in its GDL script. |
|

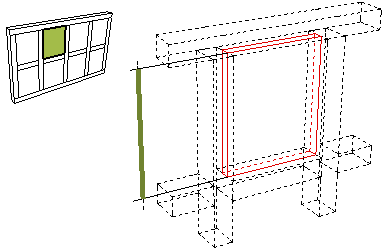

Nominal Height |
Height of the panel. |
Does not include the panel's extrusion into the surrounding frames |
|

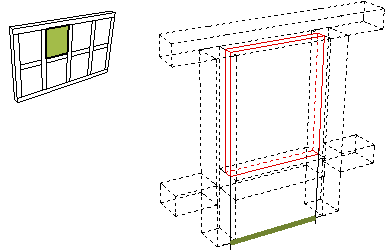

Nominal Width |
Width of the panel. |
Does not include the panel's extrusion into the surrounding frames For generic panels, this is the same as the regular Width parameter. For GDL panels, this value can be defined in the panel's parameters. |
|

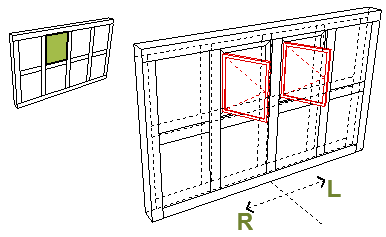

Orientation |
Lists the direction (Left or Right) of Panels which act as Doors/Windows. |
|
|

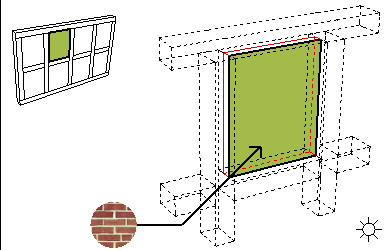

Outside Surface |
Surface of the Panel outside surface as defined in the Model Panel of CW Panel Settings. |
For panels which are GDL Objects, the surface is defined in its GDL script. |
|

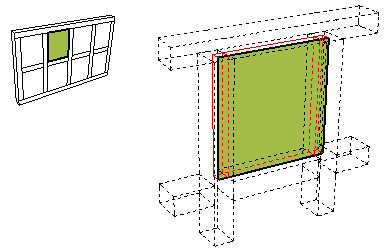

Panel Area with Clamps |
Gross surface area of the panel. |
For rectangular-shaped panels. Includes the panel's extrusion into the surrounding frames (the "depth" value defined in the Frame Type and Geometry panel of CW Frame Settings.) |
|

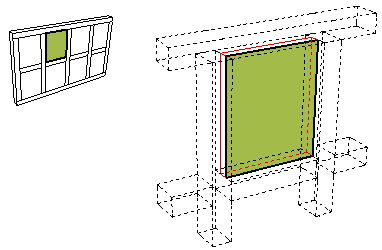

Panel Area without Clamps |
Surface area of the panel. |
For rectangular-shaped panels. Does not include the panel's extrusion into the surrounding frames |
|

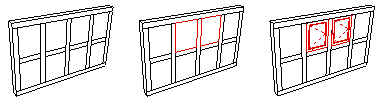

Panel Class |
Main, Distinct, or Custom. |
Assign Panel Class by clicking the panels in the Preview window of the Grid Pattern and Preview panel of Curtain Wall System Settings - Scheme Page. Panels from the "Custom" class have been individually customized using Panel Settings, accessible through Curtain Wall Edit Mode. |
|

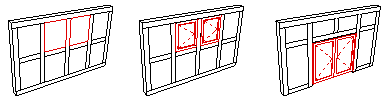

Panel Function |
Either Fixed, Window, or Door, depending on the Panel Type chosen. |
Defined in the Panel Type and Geometry panel of CW Panel Settings. |
|
Panel Type |
Name of the Panel Type. |
Defined at Panel Type and Geometry in Curtain Wall Panel Settings. |
|
