Window/Door Listing Parameters

Parameter

Short Description

Long Description



Egress Dimensions

(For Doors only.) Width and Height of egress, as defined in Door Settings (Custom Settings, Nominal Sizes and Tolerance page).





Frame Thickness

Frame Thickness, as defined in Window Settings (Custom Settings, Frame and Sash page).

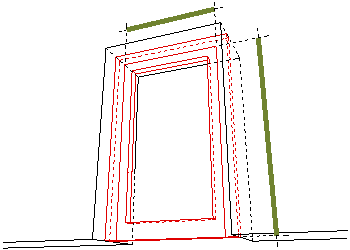

Leaf Dimen­sions

(For Doors only.) Width and Height of leaf, as defined in Door Settings (Custom Settings, Nominal Sizes and Tolerance page).

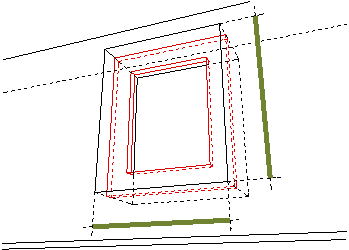

Nominal W X H Size

Displays dimensions as "Height x Width".

The Height and Width parameters that are "Set as Nominal" in the Settings dialog box (Custom Settings, Nominal Sizes and Tolerance page).

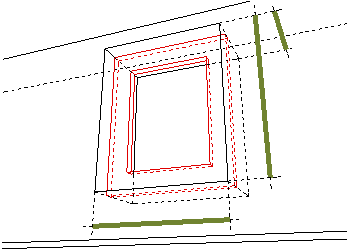

Nominal W X H x T Size

Displays dimensions as "Height x Width x Wall Thickness".

The Height and Width parameters that are "Set as Nominal" in the Settings dialog box (Custom Settings, Nominal Sizes and Tolerance page), and the thickness of the Wall in which the W/D is located. (Same as the W/D Opening  Nominal Volume.)

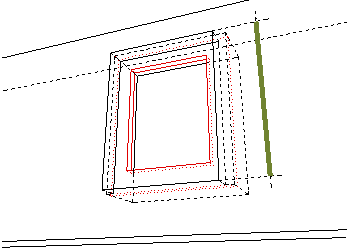

Nominal W/D Opening Height on the Reveal Side

Wallhole Height, reduced by the head+sill of the Reveal.

Relevant for openings from the ARCHICAD 10 library, if the "Nominal Size = Jamb Inner Size" parameter is ON.

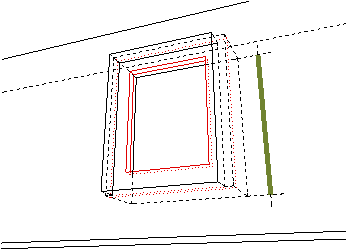

Nominal W/D Opening Height on the Side Opposite to the Reveal Side

Wallhole Height, reduced by the head+sill of the Reveal.

Relevant for openings from the ARCHICAD 10 library, if the "Nominal Size = Jamb Inner Size" parameter is ON.

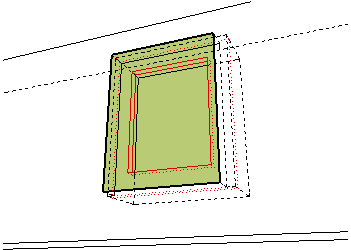

Nominal W/D Opening Surface Area on the Reveal Side

Height between sill and head x Width between Side jambs.

Relevant for openings from the ARCHICAD 10 library, if the "Nominal Size = Jamb Inner Size" parameter is ON.


Nominal W/D Opening Surface Area on the Side Opposite to the Reveal Side

Wallhole Height x Wallhole Width.

Relevant for openings from the ARCHICAD 10 library, if the "Nominal Size = Jamb Inner Size" parameter is ON.

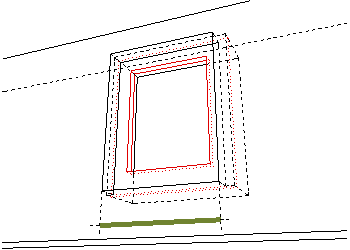

Nominal W/D Opening Width on the Reveal Side

Wallhole Width, reduced by the Side jambs of the Reveal.

Relevant for openings from the ARCHICAD 10 library, if the "Nominal Size = Jamb Inner Size" parameter is ON.

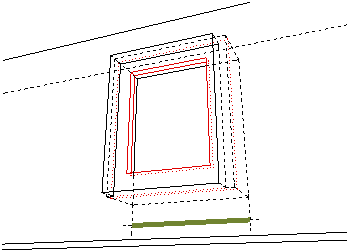

Nominal W/D Opening Width on the Side Opposite to the Reveal Side

Wallhole Width.

Relevant for openings from the ARCHICAD 10 library, if the "Nominal Size = Jamb Inner Size" parameter is ON.


Orientation

L for Left, or R for Right.

The direction in which the door or window is opened. Orientation is also indicated by the Opening line on the Floor Plan.



Reveal Dimensions

Width and Height of the window.

The Height and Width parameters defined for Reveal Dimensions, in the Door/Window Settings dialog box (Custom Settings, Nominal Sizes and Tolerance page)

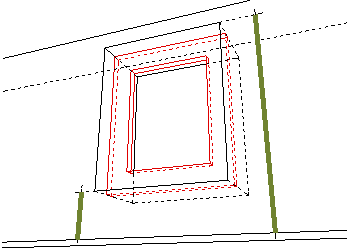

Sill/Header Value

Distance from the header (or from the sill) to the Wall Base (or to the current Story), as defined by the user.

Sill or header value as defined in Preview and Positioning panel of the Settings Dialog box.

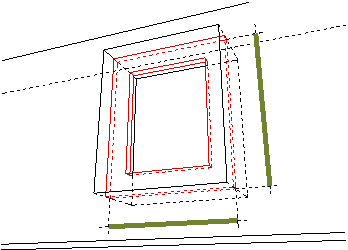

Unit Dimen­sions

Width and Height of door/window unit, as defined in Settings dialog box.

The "unit" is the door/window frame; it is the equivalent of the Wallhole less the tolerance value.


View from Opening Side

View of the door/window from the Opening Side.

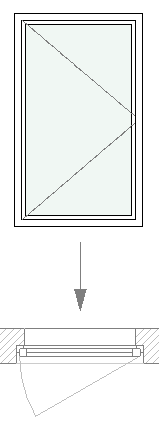

View from Reveal Side

View of the door/window from the Reveal Side.




View from Side Oppo­site to Opening Side

View of the door/window from the Side Opposite to the Opening.

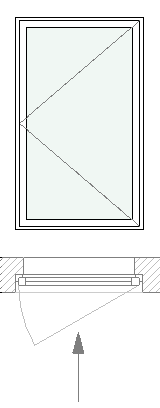

View from Side Oppo­site to Reveal

View of the door/window from the Side Opposite to the Reveal.

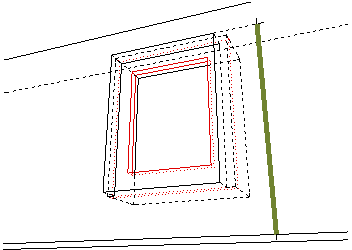

W/D Head Height on the Reveal Side

Distance from Wall base to the header.

Defined as the sum of the sill Height plus the door/window Height, taking the Reveal geometry into account.


W/D Head Height on the Side Opposite to the Reveal Side

Distance from Wall base to the header on the Opposite to the Reveal Side.

Defined as the sum of the sill Height plus the door/window Height, taking the Reveal geometry into account.

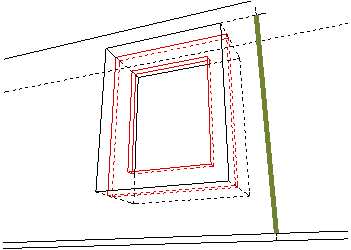

W/D Nomi­nal Head Height

Distance from Wall base to the header, taking the Reveal geometry into account. Defined as the sum of the sill Height plus the door/window Height, taking the Reveal geometry into account.

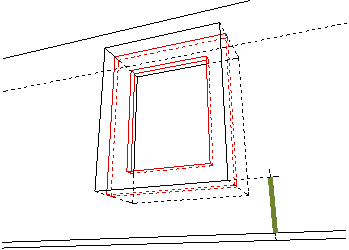

W/D Nomi­nal Sill Height

Distance from Wall base to the top of the sill. Includes the sill value plus the sill Height (if any) of the Reveal.

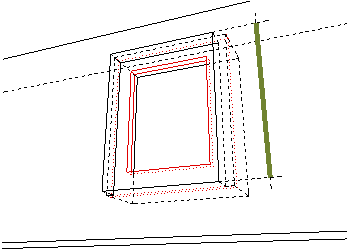

W/D Open­ing Height on the Reveal Side

Wallhole Height, less the head+sill of the Reveal.

Relevant for openings from the ARCHICAD 10 library, if the "Nominal Size = Jamb Inner Size" parameter is OFF.

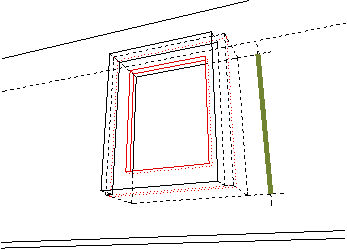

W/D Open­ing Height on the Side Opposite to the Reveal Side

Wallhole Height.

Relevant for openings from the ARCHICAD 10 library, if the "Nominal Size = Jamb Inner Size" parameter is OFF.

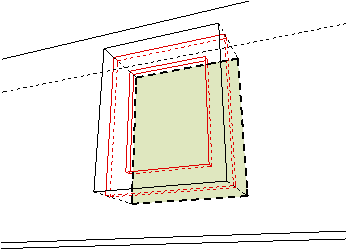

W/D Open­ing Nominal Surface Area

Wallhole Height x Wallhole Width.

Relevant for openings from the ARCHICAD 10 library, if the "Nominal Size = Jamb Inner Size" parameter is ON.

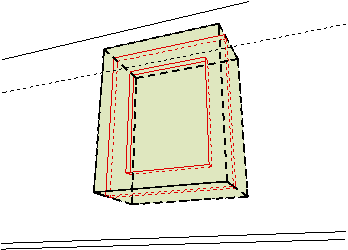

W/D Open­ing Nominal Volume

Volume, calculated by "Height x Width x Wall Thickness".

These are the Height and Width parameters of the Opening size defined as "Nominal" in the opening's Settings dialog box, and the thickness of the Wall in which the Opening is located. (Same as the W/D Opening  Nominal Volume.)


W/D Open­ing Surface Area on the Reveal Side

Height between sill and head x Width between Side jambs.

Relevant for openings from the ARCHICAD 10 library, if the "Nominal Size = Jamb Inner Size" parameter is OFF.

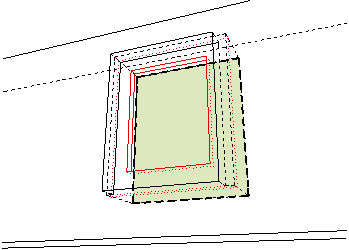

W/D Open­ing Surface Area on the Side Oppo­site to the Reveal Side

Wallhole Height x Wallhole Width.

Relevant for openings from the ARCHICAD 10 library, if the "Nominal Size = Jamb Inner Size" parameter is OFF.


W/D Open­ing Width on the Reveal Side

Wallhole Width, less the Side jambs of the Reveal.

Relevant for openings from the ARCHICAD 10 library, if the "Nominal Size = Jamb Inner Size" parameter is OFF.

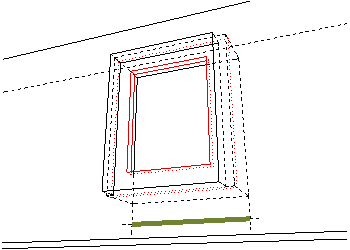

W/D Open­ing Width on the Side Opposite to the Reveal Side

Wallhole Width.

Relevant for openings from the ARCHICAD 10 library, if the "Nominal Size = Jamb Inner Size" parameter is OFF.

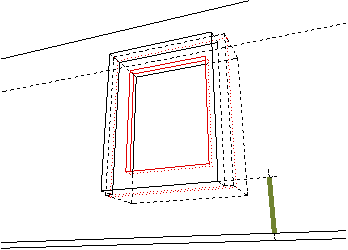

W/D Sill Height on the Reveal Side

Distance from Wall base to the sill, taking the sill jamb depth of Reveal into account.

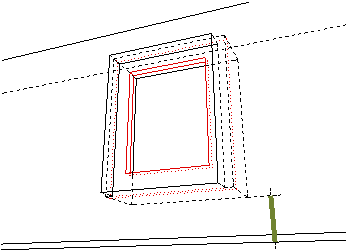

W/D Sill Height on the Side Opposite to the Reveal Side

Distance from Wall base to the sill, regardless of sill jamb depth of Reveal.




Wall Struc­ture

Name of Building Material or Profile of the Wall in which the door/window is placed.





Wall Thick­ness

Thickness of the Wall in which the door/window is placed

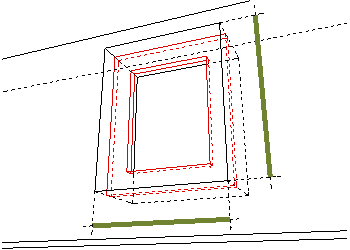

Wallhole Dimensions

Width and Height of the door/window Wallhole as defined in Settings dialog box (Parameters panel or Custom Settings panel).

The "Wallhole" is the Opening that is cut into the Wall, and is composed of the dimensions of the unit (frame) plus any tolerance values.
