Mesh Listing Parameters

Parameter

Short Description

Long Description

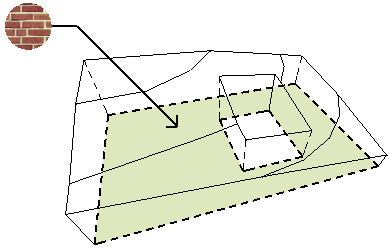

Bottom Sur­face

Name of surface assigned to the bottom of the Mesh.




Bottom Sur­face Area

Surface area of the bottom of the Mesh, subtracting the area of any holes.

Listed for Solid only. (Skirted and surface-only meshes do not have a bottom.)

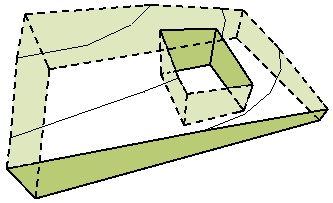

Edge Surface Area

Surface area of the edge of the Mesh, including the surfaces of all hole edges.

Listed for Solid and Skirted meshes only. (Surface-only meshes do not have an edge.)

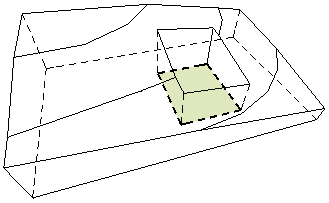

Holes Sur­face Area

Total top (2D) surface area of all the holes in the Mesh




Mesh Type

Construction method used to create Mesh:

Surface only, Surface with Skirt or Solid Body

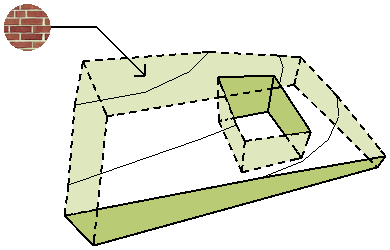

Side Surface

Name of the surface assigned to the side of the Mesh.

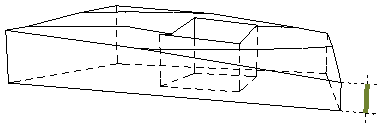

Skirt Level

For Meshes with a skirt, the height of the skirt (difference between the base and top values as shown in the Info Box.)

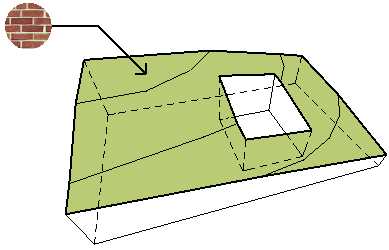

Top Surface

Name of the surface assigned to the top of the Mesh

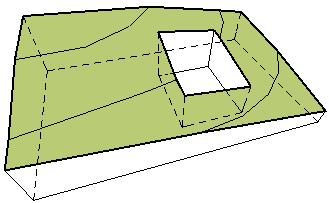

Top Surface Area

Surface area of the top of the Mesh, subtracting the surface area of any holes.
