Morph Listing Parameters

Parameter

Short Description

Long Description

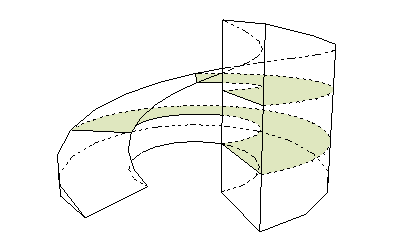

Area (by Story)

Area of the Morph broken down by Story

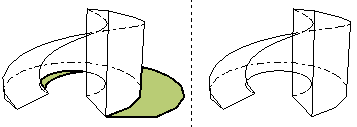

Cast Shadow

On or Off

Set checkbox in Morph Settings Model Panel.


Classifica­tion by DIN

Available only if you are using the Flächenberechnung (Area List) Add-On (used in German-speaking markets).

Set this value in Morph Settings - Classification and Properties Panel

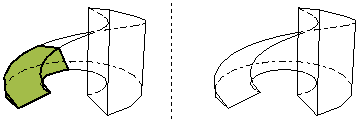

Receive Shadow

On or Off

Set checkbox in Morph Settings Model Panel.

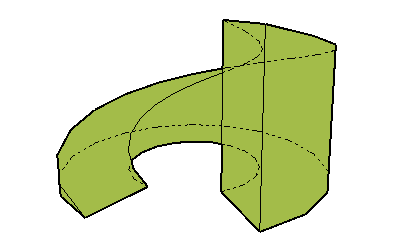

Surface

Name of the surface assigned to the entire Morph.

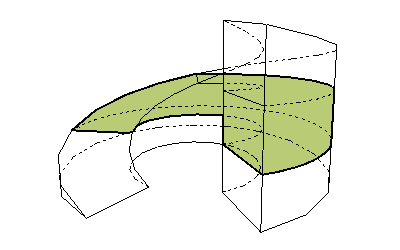

Volume (by Story)

Volume of the Morph broken down by Story
