Slab Listing Parameters

Parameter

Short Description

Long Description

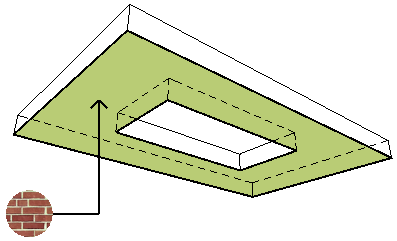

Bottom Sur­face

Name of the Surface assigned to the Bottom Surface of the Slab.

Defined in Slab Settings

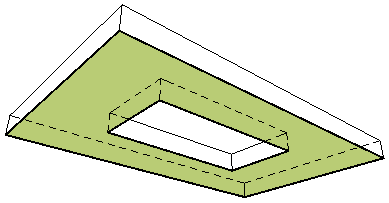

Bottom Sur­face Area

Area of the Surface of the Slab Bottom

Reduced by any trims, SEO's or holes.

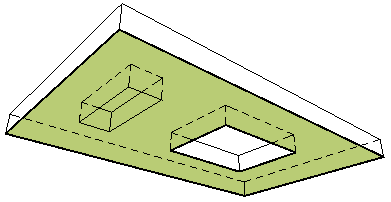

Conditional Surface Area of the Bot­tom

Surface Area of the Bottom of the Slab - this Area may be conditioned on a defined Calculation Rule.

Condition: Subtracts the Area of holes only if they exceed a given size, as defined in Options > Project Preferences > Calculation Units & Rules ("Reduce Slab Surface by…")

Reduced by trims and SEO's.

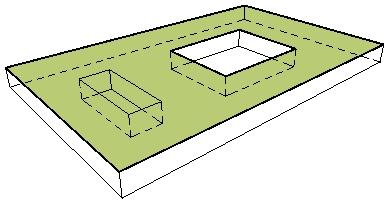

Conditional Surface Area of the Top

Surface Area of the Top of the Slab - this Area may be conditioned on a defined Calculation Rule.

Condition: Subtracts the Area of holes only if they exceed a given size, as defined in Options > Project Preferences > Calculation Units & Rules ("Reduce Slab Surface by…")

Reduced by trims and SEO's.

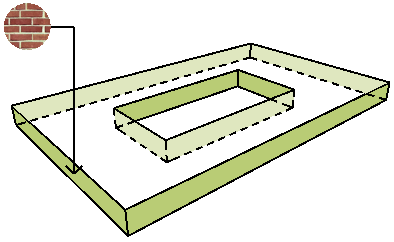

Edge Surface

Name of Surface assigned to Slab edges.

Lists the Slab's default edge surface (as defined in its Building Material). Not listed for composite Slabs.

To list all Surfaces, including custom ones and those of composite elements, use a Surface-type list (e.g. All Finishes).

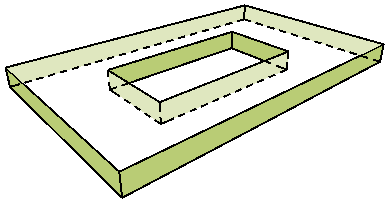

Edge Surface Area

Area of the Surface of the edge of the Slab

Reduced by trims and SEO's.

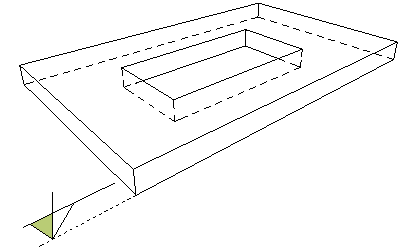

Elevation Bottom

Elevation of the Bottom of the Slab

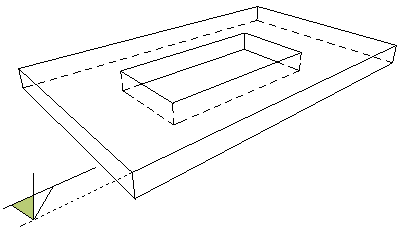

Elevation Top

Elevation of the Top of the Slab

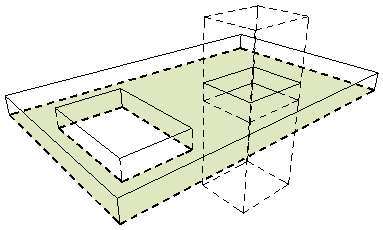

Gross Sur­face Area of the Slab Bottom

Area of the Surface of the Bottom of the Slab, including the Surface of any holes.

Reduced by trims. SEO's are ignored

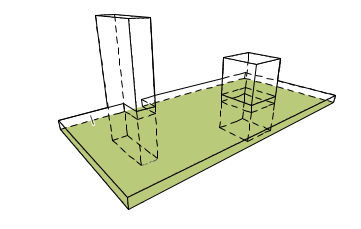

Gross Sur­face Area of the Slab Bottom with holes

Area of the Surface of the Bottom of the Slab, subtracting the Surface of any holes.

Reduced by trims. SEO's are ignored

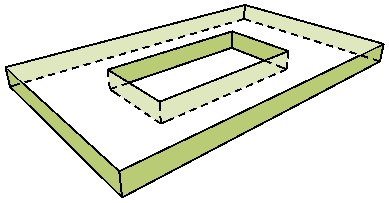

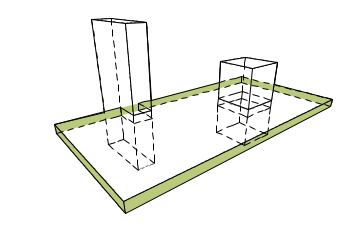

Gross Sur­face Area of the Slab edges

Area of the Surface of all the Slab edges. Hole edges are ignored.

Reduced by trims. SEO's are ignored


Gross Sur­face Area of the Slab edges with holes

Area of the Surface of all the Slab edges, including the edges of any holes.

Reduced by trims. SEO's are ignored

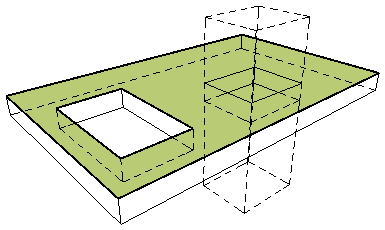

Gross Sur­face Area of the Slab Top

Area of the Surface of the Top of the Slab, including the Surface of any holes.

Reduced by trims. SEO's are ignored

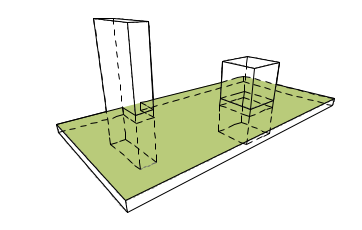

Gross Sur­face Area of the Slab Top with holes

Area of the Surface of the Top of the Slab, reduced by the Surface of any holes.

Reduced by trims. SEO's are ignored

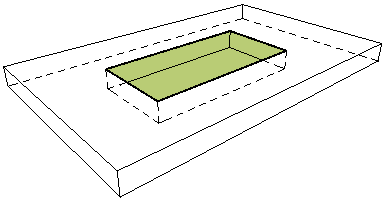

Holes Sur­face Area

Total Top Surface Area of all holes in the Slab, measured according to the Slab's 2D polygon.

SEO's are ignored


Reference Plane Loca­tion

Top or Bottom.

For a composite Slab, can also be Core Top or Core Bottom

Reference Plane location as defined in Slab Settings.

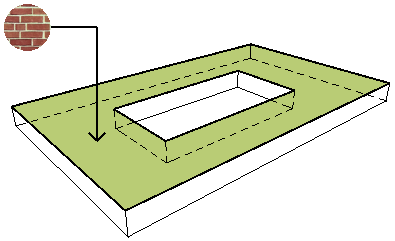

Top Surface

Name of Surface assigned to the Top Surface of the Slab.

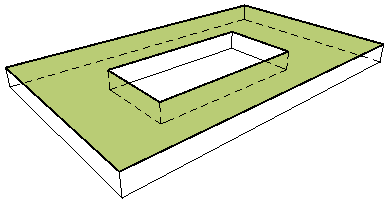

Top Surface Area

Area of the Surface of the Top of the Slab.

Reduced by any trims, SEO's or holes.
