Stair Listing Parameters

Parameter

Short Description

Long Description



Default Going Depth

Going depth as defined in Stair Settings.




Default Riser Height

Riser Height as defined in Stair Settings

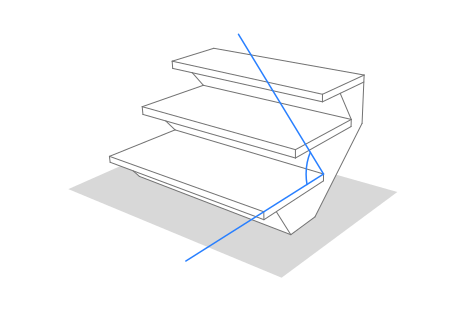

Default Riser Slant Angle

As defined in Stair Settings

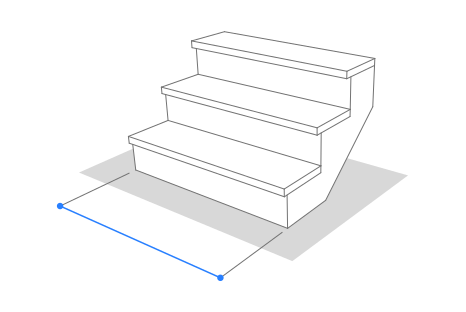

Default Stair Width

Width of the Stair as defined in Stair Settings.




Front Sur­face Area

Total Surface area of the Stair from the front

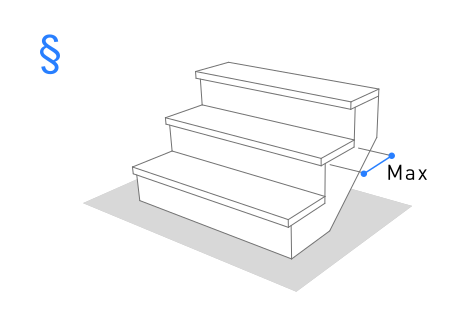

Maximum Going (by Rule)

As defined in Stair Settings (Rules & Standards Panel)




Maximum Riser Height (by Rule)

As defined in Stair Settings (Rules & Standards Panel)




Minimum Going (by Rule)

As defined in Stair Settings (Rules & Standards Panel)




Minimum Riser Height (by Rule)

As defined in Stair Settings (Rules & Standards Panel)




Number of Risers (total)






Number of Risers by Flights

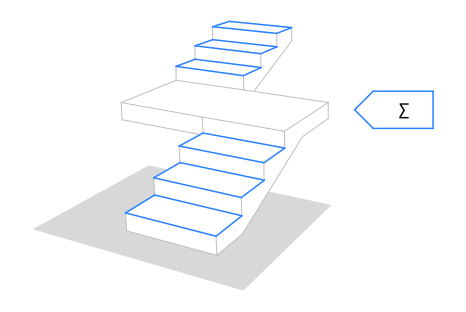

Number of Treads (total)

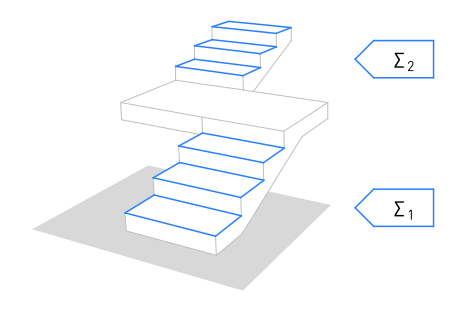

Number of Treads by Flights






Required Head­room Height

As defined in Stair Settings (Rules & Standards Panel)

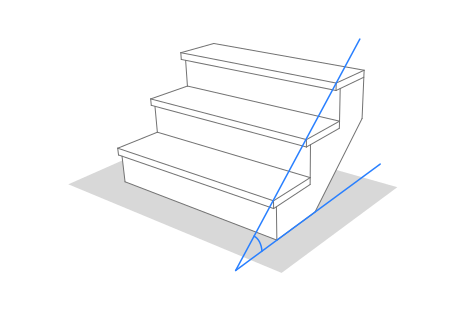

Stair Pitch

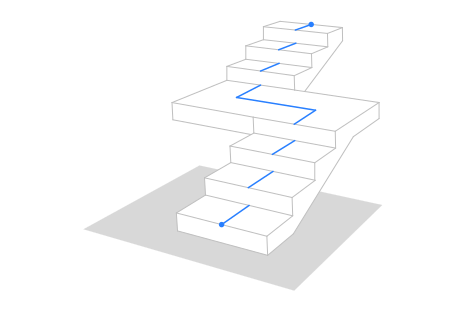

Walking Line Length

Length of Calculated Walking Line.

Calculated Walking Line: defined in the Geometry and Positioning panel of Stair Settings.

(Can differ from length of graphically edited Walking Line.)
