Stair Finish Listing Parameters

Parameter

Short Description

Long Description

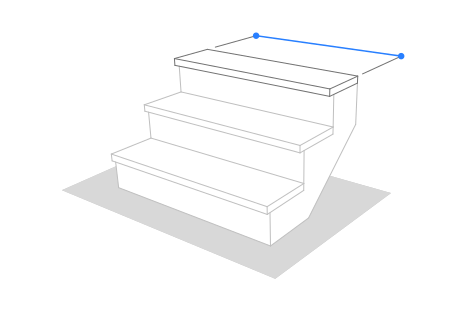

Back Width

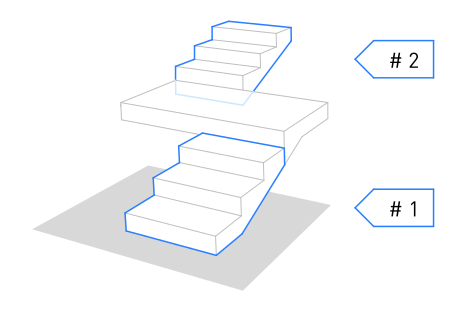

Flight Index

The Flight number to which the Tread/Riser belongs.

(A Tread/Riser on a Landing has a Flight Index of 0.)

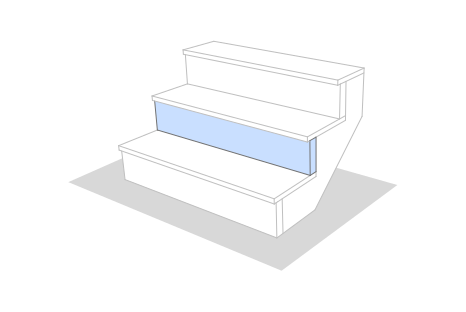

Front Sur­face Area

Surface area of the front of the tread (based on its vertical projection)

The visible part of the Riser viewed from the front

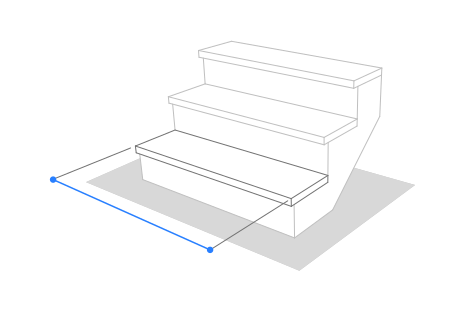

Front Width






Segment Type

Landing, Run, Divided Landing, Winder Turn

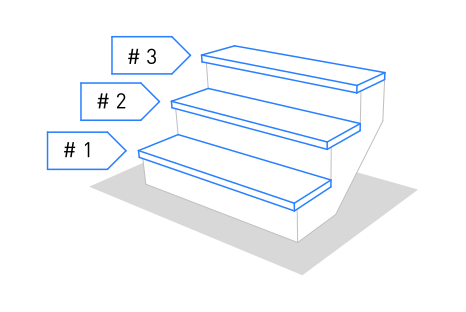

Step Index

The Step number to which the Tread/Riser belongs




Total Sur­face Area

Total Surface area of the Riser




Tread Flight Length

Going depth plus Tread Nosing





Tread Going

Going depth

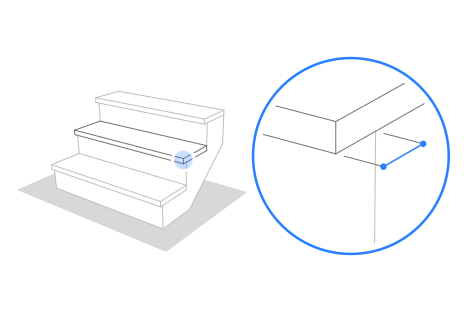

Tread Nos­ing

Length of nosing's horizontal protrusion

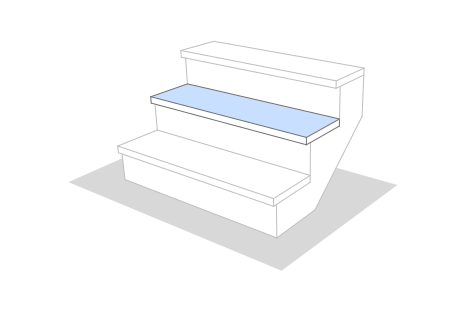

Tread Top Surface Area

Surface area of the top of the tread
