Stair Structure Listing Parameters

Parameter

Short Description

Long Description



Construc­tion Type

Type of Stair Structure: Monolith, Beam, Stringers, or Cantilevered

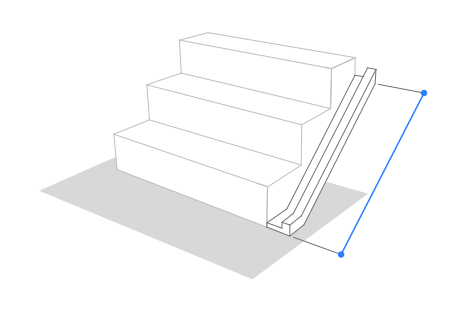

Drain Length

Length of Draining (Monolith Structure only)

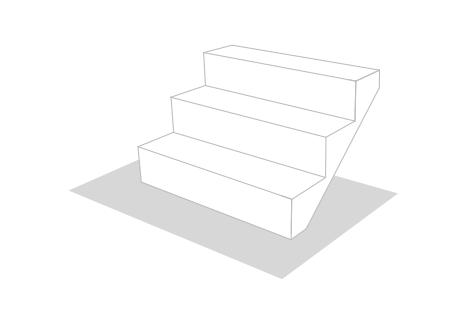

Drain Posi­tion

Position of Draining (Right and/or Left, relative to direction of Stair baseline).

Assign in "Draining on Flight" Panel of Stair Settings (Monolithic Structure only)


Profile Height

Profile dimension of the supporting Structure.

Not relevant for Monolithic structure.

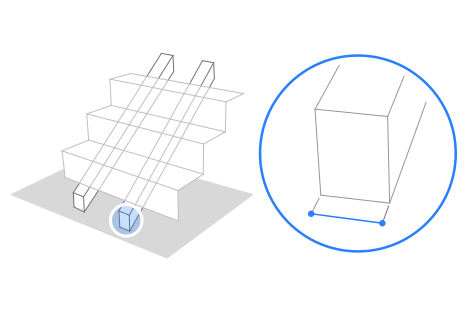

Profile Width

Profile dimension of the supporting Structure.

Not relevant for Monolithic structure.

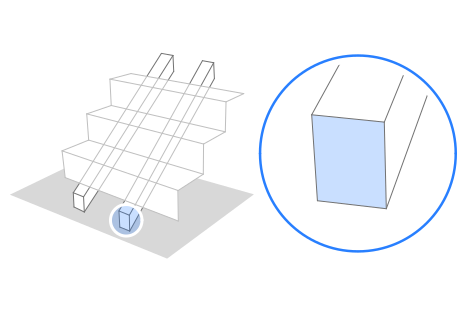

Profile WxH

Profile dimension of the supporting Structure.

Not relevant for Monolithic structure.

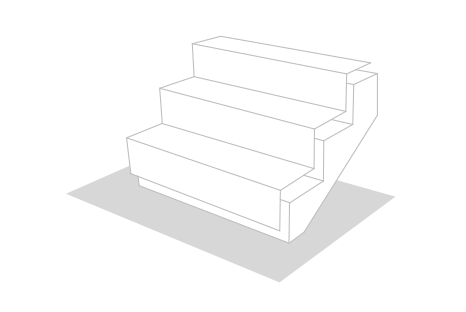

Secondary Thickness

As in Settings - relevant for Monolithic Flight Structures using a Stepped or Variable shape.




Shape Type

Shape of Stair bottom: Straight, Stepped, or Flat.




Stair Struc­ture 3D Height

Height of Stair structure in 3D

Measured from the flight's lowest to highest z-point



Stair Struc­ture Flight Index

Flight number

Flight structures are numbered consecutively



Stair Struc­ture Land­ing Index

Landing number

Landing structures (if any) are numbered consecutively

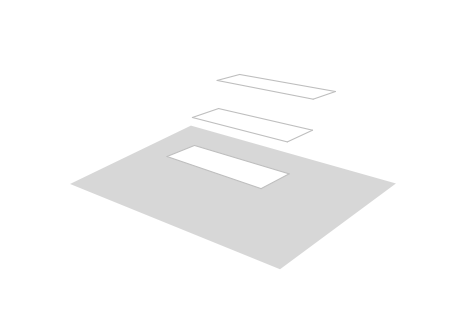

Stair Struc­ture Posi­tion

For Stringers: Left or Right position. All other Structures are listed as "Under Stair."




Thickness

Thickness of Structure element (as in Settings).
