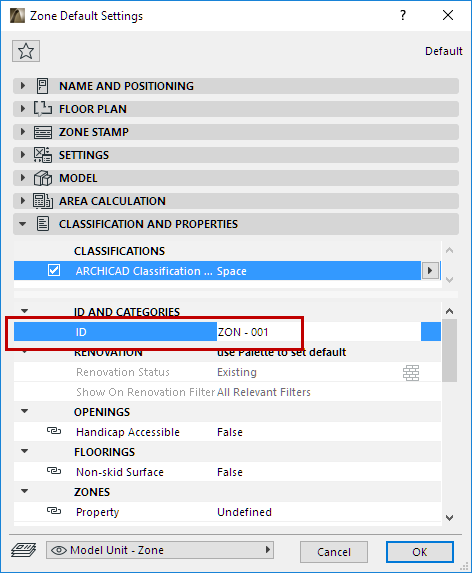

The ID field is located on the Classification and Properties panel of all construction element type tools as well as the Fill and Zone tools.
The ID serves to identify and group elements in list views. You can also use the ID in the Label associated to elements. Any character can be used.
Element ID is also important if you wish to save the ARCHICAD Model in BIMx Hyper-Model format: when working in a Teamwork context, BIMx provides feedback on selected elements based on their Element ID. (Make sure you include this element ID data when saving the ARCHICAD model as a BIMx Hyper-model - otherwise, BIMx cannot provide ID-based feedback on the model’s selected elements.)
Note: All construction elements also have a unique, automatically generated, unique ID (GUID) which is conserved throughout the life of the Project. You can also use this identifier for labeling or in lists.
Filtering or grouping elements by their IDs is used by many List Schemes. Totals obtained in calculations can refer to elements that have the same ID. Therefore, the content of the ID may be significant.
•If a number is included anywhere in the ID field, drawing successive elements will add one to this number for each new element, provided that the Assign New Element ID to Each New Element checkbox is enabled the Options > Work Environment > More Options dialog box. If there is no number in the ID field, each new element of the given type will have the same ID.
•If elements are duplicated or multiplied, the IDs of the replicas will remain the same as those of the originals.
•If you paste elements into a Project, you may have elements with conflicting IDs.
See also Element ID Manager.
