Symbol Labels for Element Information

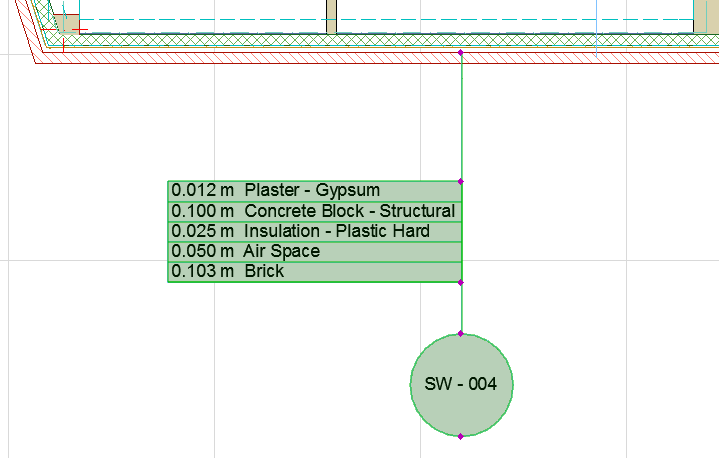

Symbol Labels can display all kinds of element information on the drawing, for example the skins of a composite Wall.

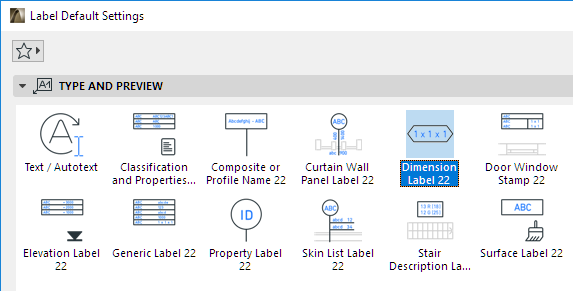

Symbol Labels are GDL objects. Along with Text/Autotext Labels, they are available from the Label Tool pop-up and Label Tool Settings.
The following are the standard Symbol Labels available in the ARCHICAD INT Library. Labels provided in other localized ARCHICAD libraries may vary, to meet local standards.
|
|
Element parameters Classification and Properties IFC Properties |
|
|
|
Element / Hotlink ID |
|
|
|
Element/Hotlink ID Dimensions Property values |
|
|
|
Dimensions Area Volume |
|
|
|
Element/Hotlink ID Dimensions Surfaces |
|
|
|
Elevation dimensions |
|
|
|
Generic Label |
Element / Hotlink ID Name Elevation dimensions Dimensions Area Volume Skin list Composite / Profile / Bldg Material name Surfaces |
|
|
Property Label |
Element / Hotlink ID Name Property values |
|
|
Building Material properties Element / Hotlink ID Dimensions Skin list |
|
|
|
Dimensions Parameters |
|
|
|
Stair-Specific Dimensions (Width, Riser Height, Going Depth, Number of Risers) |
|
|
|
Surfaces |
See also Labeling Curtain Walls.
See also Select Surface (for Surface Label).
Not every label can be placed on every element type. For example, if you inadvertently attach a Door Window Stamp to a Column, a “placeholder” text will inform you of the mistake.

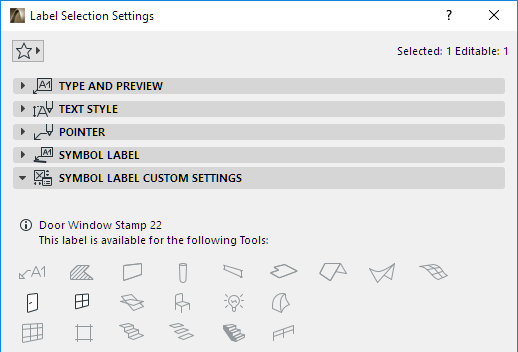

Note: For each label, Custom Label Settings provides information on which element types it can be applied to.
For more details, see Custom Settings for Symbol Labels.
You can also create your own Label by saving 2D drawing elements, including Autotext.
