Reservation Results (Teamwork)

When you attempt to Reserve a set of elements or data in Teamwork, it may occur that some of the elements cannot be reserved by you.

Reasons for a failure to reserve elements or project data:

They are already reserved by another user

They have been deleted

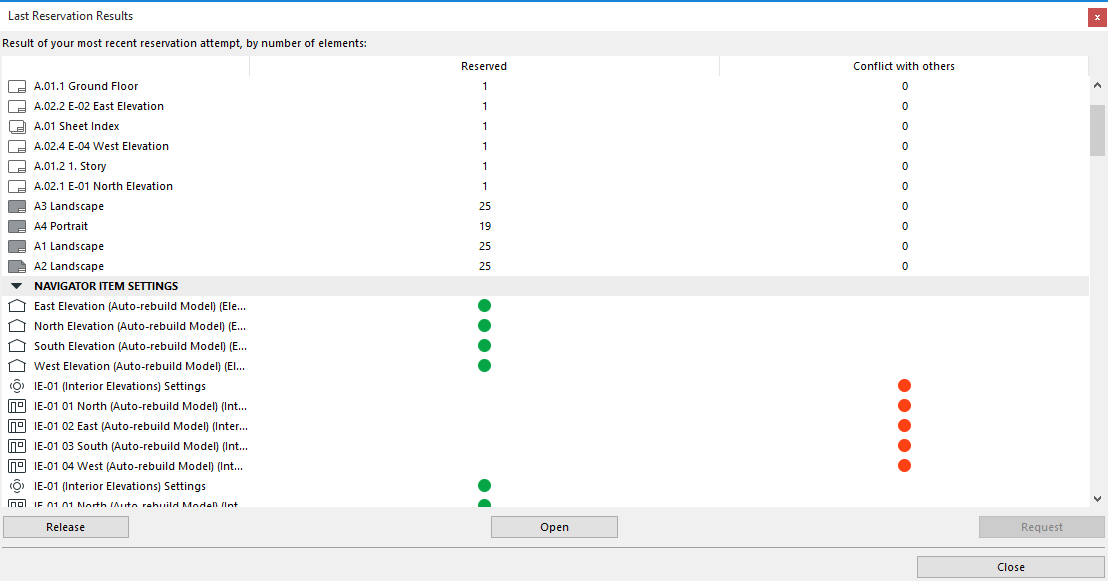

In such cases, the Last Reservation Results palette appears with feedback on the results.


Note: The Last Reservation Results palette also appears if you click “Reservation Results” from the Reserve pop-up button on the Teamwork Palette.

This palette lists the elements (by project region) and the project data that have run into a conflict:

Elements by Project Region: For every Project Region listed, shows the number of elements successfully reserved and the number of elements that were not reserved due to a conflict.

For each of the rest of the groups listed in the Last Reservation Results Palette, the reservation result is indicated by a green light in the Reserved column; a red light in the Conflict column; or a gray light to indicate “No Access Right.”

Navigator Item Settings

Attribute Types

Library

Other Settings


Select one or more item in the list and choose an option:

Release: Release the reservation for the selected region. Reserved elements listed here are now returned to their previous ownership status.

Show Conflict: (Available only if you have selected a single region in the list.) ARCHICAD will open the window of the selected region, and zoom into and select the unreservable element(s).

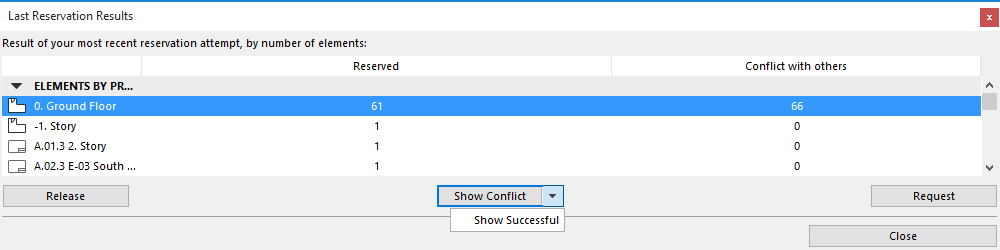

Show Successful: (Available from the Show Conflict button’s pop-up.) ARCHICAD will open the window of the selected region, and zoom into and select the successfully reserved element(s).


Open: (Available only if you have selected a single Navigator Item or Settings item in the list). ARCHICAD will open the selected Settings dialog box.

Request: Click this Request for all the “conflict” elements in the selected region(s). A Request message is created: click Send to send this message to the owners of all of these elements.

See also Request Elements or Project Data (Teamwork).
