Skylight Tool Settings

The left-hand browser area of the Skylight Settings dialog box is similar to those of other Library Part elements.

See Settings of Library Part Elements.

For general information, see Skylights.

Skylight Preview and Positioning Panel

Width: Enter Skylight width.

Height: Enter Skylight height.


Constraint in Roof: Only available for selected Skylights placed in Roofs (not Shells). Use this control to decide how to constrain the Skylight position in a modified Roof plane:

either Horizontally (the Skylight will retain its position as seen on the Floor Plan)

or Vertically (the Skylight will retain its vertical elevation regardless of its Floor Plan position.)

For more information, see Skylight Constraint Relative to Roof.

Sill or header height: This field that expresses the height of the Skylight anchor point (either its sill or header) as measured from either a particular story, or from the Roof Pivot line. (If you have constrained the Skylight position horizontally, this field is read-only.)

Click on a hotspot the Preview window to define the Skylight sill/header anchor point (at the top or bottom of the Skylight).

SkylightSill.png     SkylightHeader.png

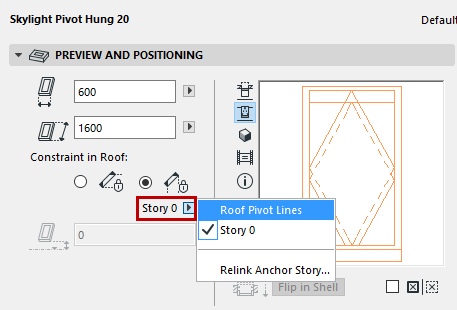

From the pop-up, choose whether to measure this height from a particular story, or the Roof pivot line.


The Flip in Shell button is only available for selected Skylights placed in Shells (not Roofs). Click Flip in Shell to change the orientation of the Skylight to the opposite side (e.g. from “inside” to “outside”.)

Check the Mirror Library Part box to mirror the Skylight when placing it, or to mirror a selected Skylight.

Preview Area

See Preview Options.

A Skylight is positioned by its hotspot, defined in the 2D symbol of the Library Part.This hotspot is marked with a highlighted rectangle, and it will act as the insertion point and anchor point for the Object.

The other hotspots (if any) are displayed as X’s. Click any of them if you wish to use it as an insertion/anchor point instead of the default primary hotspot.

Skylight Settings

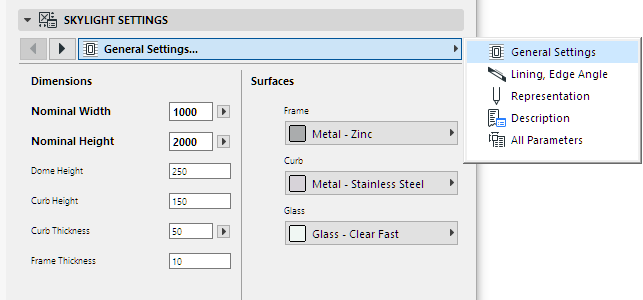

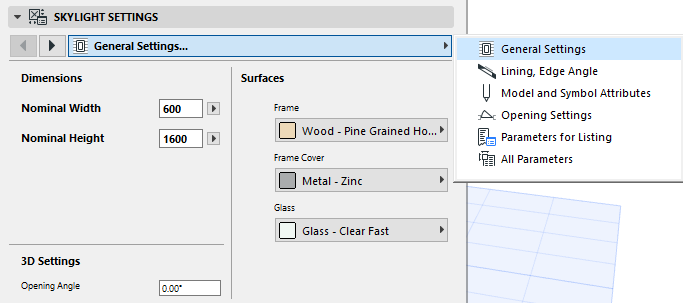

Use this interface to set parameters for the Skylight.

Note: Fill and pencolors for Floor Plan display can be defined either in this panel (using the Representation controls), or else overwritten by entering custom fills and pens in the Floor Plan and Section panel below.


Click any of the parameters to select it and to modify the value of the variable.


Skylight Floor Plan and Section Panel

On the Floor Plan, Skylights are, by default, based on a 3D projection, not a symbolic depiction.

Note: Skylights in Single-plane Roofs that were migrated from ARCHICAD 14 or older version projects can be displayed, if you prefer, using a Symbolic depiction.

See Legacy Preferences.

For information on overriding the Skylight’s defined GDL attributes:

See Override GDL Object Attributes of Doors/Windows.

Skylight Dimension Marker Panel

The Dimension Marker panel features the customizable options for the Skylight’s Dimension Marker.

To show or hide Skylight markers on the plan, use the Skylight Options in Document > Model View > Model View Options.

For more information, see Model View Options for Construction Elements.

Dimension Markers are essentially parametric GDL objects permanently linked to the opening.

The dimension units of Skylight markers can be customized in Options > Project Preferences > Dimensions.

For more information, see Dimensions Preferences.

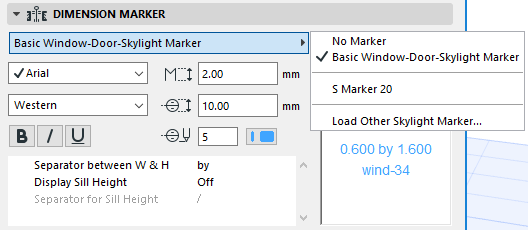

From the pop-up list, choose a predefined Marker or browse for a different marker object.


The preview window gives you feedback on the selected Marker’s appearance.

Define Marker size and pencolor.

Uniform Marker Pen: Check this box to use this pencolor for all parts of the marker symbol, regardless of any custom colors set elsewhere for this marker.

Skylight Marker Settings Panel

The Marker Settings panel contains options for the Library Part type dimension marker. The panel is active only if an eligible Marker has been selected in the Dimension Marker panel.

Sill Height: Use this control if you want the Skylight marker to indicate a sill height value which takes into account the height difference (if any) between the story level and the sill of the Skylight (e.g., to account for carpeting). This value will then be calculated as part of the sill value shown in the Skylight marker.

See also Sill or Header Heights.

This value will not affect the positioning of the Skylight.
