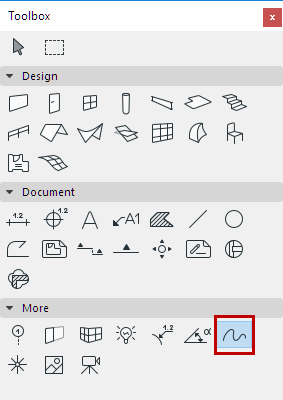

Spline Tool Settings

For a description of generic settings common to all tools in the Toolbox, see Working in Tool Settings Dialog Boxes.

Geometry methods are: Natural Splines, Bézier Splines and Free-hand.


For more information, see Drawing Splines.

Spline General Settings Panel

The General Settings panel is similar to those of the Line, Arc/Circle, Polyline and Spline tools.

See description at Line General Settings Panel.

For Splines only, use the two pairs of control buttons to define the type of spline:

either a natural Spline or a Bézier curve.

either an open-ended or a closed spline.

Spline Properties Panel

See description at Line Properties Panel.
