Hotspot Tool Settings

Hotspots are drafting aids to mark important nodes anywhere on screen.

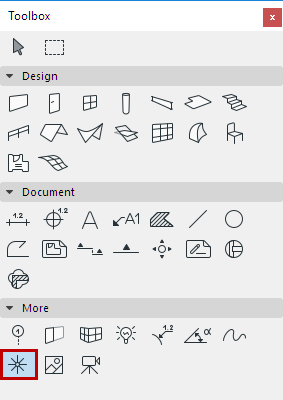

To add Hotspots to your plan, activate the Hotspot Tool and click.

Note: Hotspots do not appear on the printed and plotted outputs.

For more information, see Hotspots.

Hotspot Color Panel

Click the Color drop-down menu to either type a Pencolor number (1-255) for the Hotspot in the text field or choose the appropriate color from the pop-up palette.

For more information on other options of this dialog box, see Working in Tool Settings Dialog Boxes.
