Natural Ventilation

The following is a description of the Frame Style and Dimensions page of the Custom Settings Panel of Door or Window Settings, from the INT ARCHICAD Library.

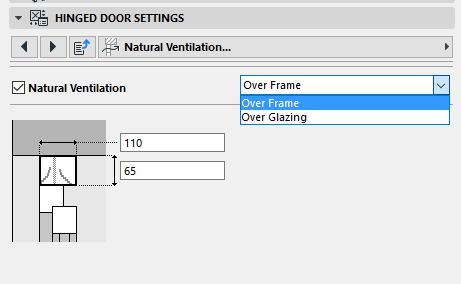

Natural Ventilation: Check this if the opening uses natural ventilation, then define its position: choose either “over Frame” or “over Glazing.”

In the fields below, define the height/width of the ventilation component profile (for each sash, if applicable.)
