Collaboration/Interoperability
Natively read and write IFC4.3 in Archicad
Updated documentation will be available here: Archicad C++ API
•Opening - support for Polygon input method
•Design Options - extensive control for creating, modifying and deleting Design Options, Set and Combinations
•Morph - support to set all edges to solid, hidden or soft
•Set an on-screen notification bubble/tooltip and its position
•Read and display an add-ons own menu command and shortcut
•Support for different arrowheads for Line based tools

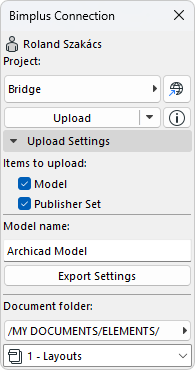

Publish your model and documentation to Allplan’s Bimplus, using the direct connection from Archicad. Requires Bimplus account.
Bimplus enables collaboration with other disciplines (for example engineers using Allplan) on large projects. Different model types can be aligned in a common federated model space.
Bimplus Connection can upload documents from Archicad, and can update them with new revisions. It does not download data from Bimplus to Archicad.
Natively Import OBJ files from other 3D software into Archicad.
This new add-on is included in the main Archicad package.

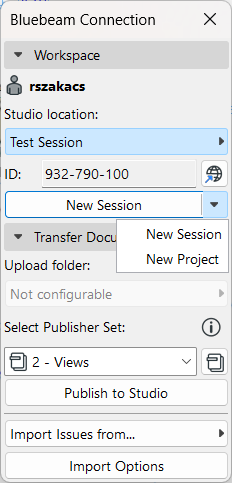

With Bluebeam Connection, Archicad users can create Bluebeam Studio Sessions and Projects and populate them with Archicad 2D documentation quickly, without having to open Bluebeam Revu or Cloud. The Studio Session can be shared with anyone (Bluebeam account is required to join) for a quick review of the documents. Then, Bluebeam Connection can grab the annotations and turn them into Archicad issues.
