MEP Element Custom Settings (Duct, Cable Carrier, Pipe, Elbow, Transition)

Available with Archicad Collaborate

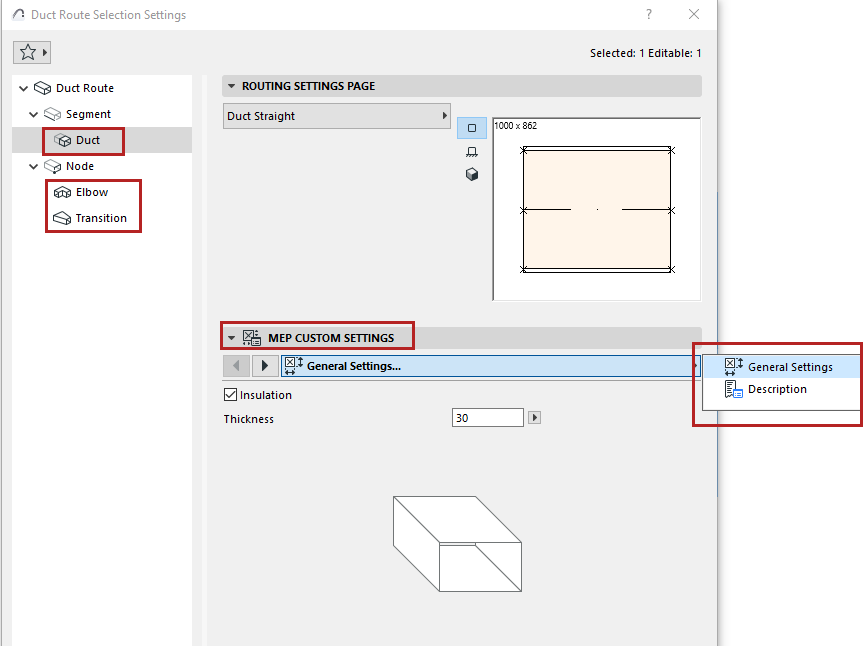

•Choose the MEP element for the segments or the Node parts in this Route

•Set its Custom Settings in the panel below. (Available settings vary depending on the MEP element.)

General Settings

Insulation

Check to add an insulating layer to the element’s outside surface. Then enter the insulation’s Thickness value.

Note: Uniform Insulation value for all parts of the route (duct/pipe, elbow, transition) can be set at the Route level. See Route Settings - Branch, Positioning, Insulation.
