Manage attributes and folders (Attributes palette)

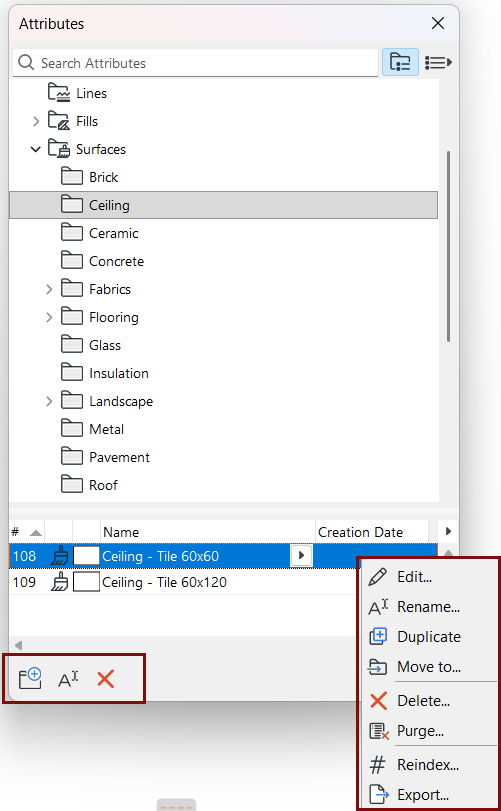

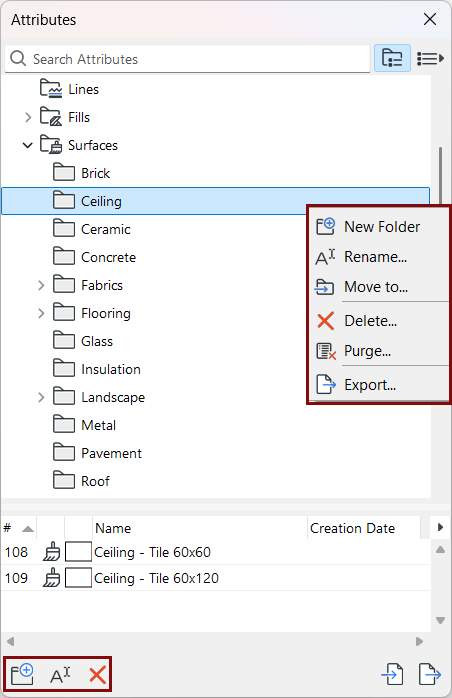

For a selected attribute or folder:

Use context menu or button commands.

AttributeFolderCommands.png     AttributeEditSelect.png

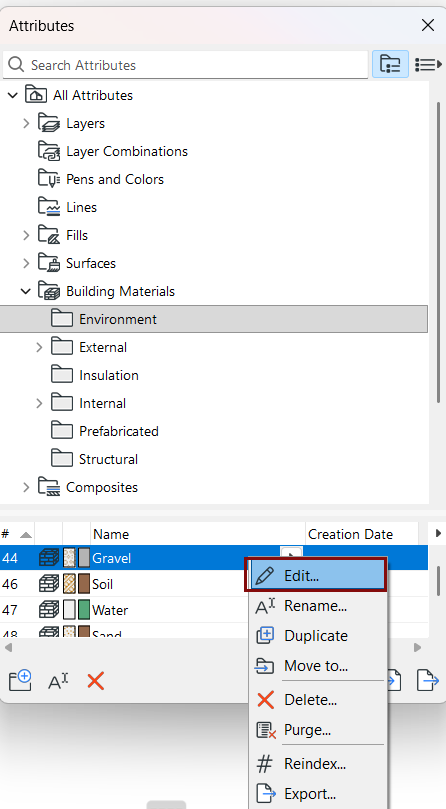

Edit attribute

From Attributes:

Double-click any listed attribute, or use the Edit context-menu command to open its settings dialog.



Create or move folders

Within each main attribute folder, you can create any number of sub-folders at any level.

Drag and drop one folder at a time to any other level of the hierarchy.

Note: You can’t have two child folders of the same name inside the same parent folder.

Merge two folders of the same name

Drag one of the folders into the parent of the other one. The contents of the two subfolders will be merged in a single folder.

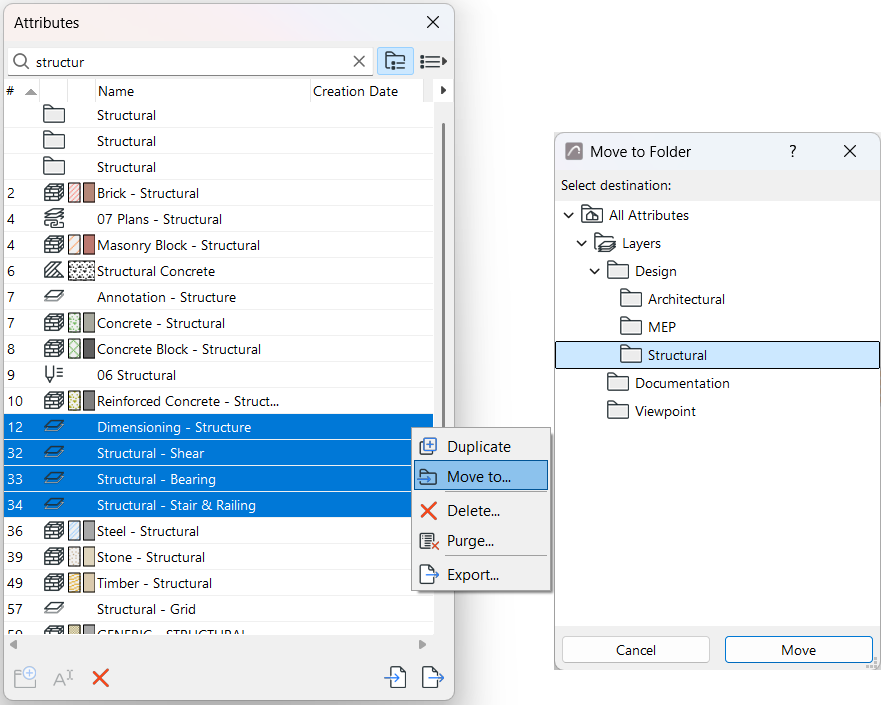

Move to

For selected folders or attributes:

Click Move to from the context menu

For example

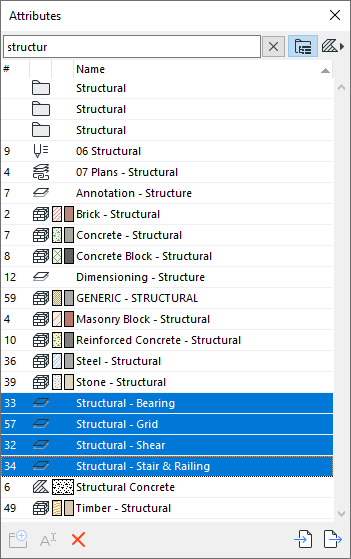

  1. Use the Search bar to find and select particular attributes

  2. Close the search. Your search selection is still active.

  3. Click Move to from the context menu
  4. Choose a folder to move the selected items.

Drag and drop attributes among folders

Select/multi-select, and drag and drop attributes from the bottom list into any folder.

Note: Attributes must be located under their own type. (You can’t put a fill into a surface folder.)
