Post Settings (Railing Tool)

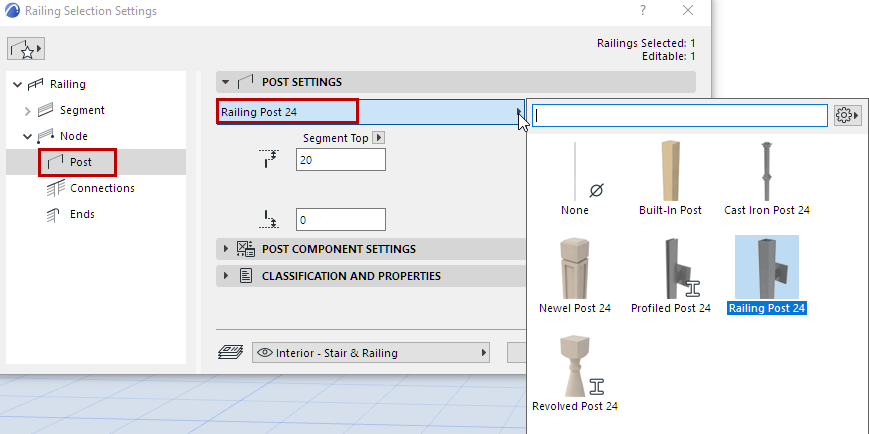

From the pop-up, choose a GDL component to be placed as a Post at each Node of the Railing, or choose None from the pop-up (if you do not want to place a physical Post).

To define settings for the GDL component, use the panel below. See Post Component Settings (Posts/Inner Posts/Balusters).

In addition to predefined content, you can save a custom component as a Post.

For details, see Custom Sub-Elements for Stairs and Railings.

Post Top/Bottom Offset

Enter a bottom and top offset value for the Post.

Use the pop-up to define how to calculate the offset:

• Segment Top: Set the offset value relative to the Segment height.
  Note: Segment height is defined in Segment Settings. See Segment Height and Vertical Offset.
• Absolute: Enter the Post’s absolute height. The Post is then offset from the Segment top accordingly.
