Column Display on Floor Plan and Section

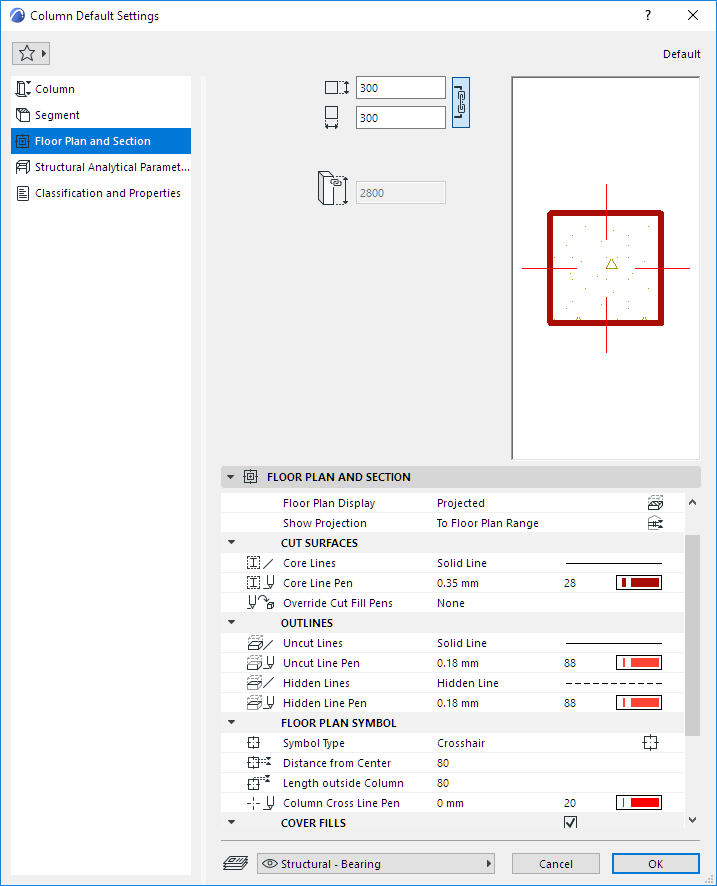

Use the Floor Plan and Section page of Column Settings.



See Element Display in Floor Plan and Section.

Hidden Lines

Define Hidden Line attributes. Hidden Lines are used for Columns under Slabs if this is turned on at Model View Options.

See Model View Options for Construction Elements.

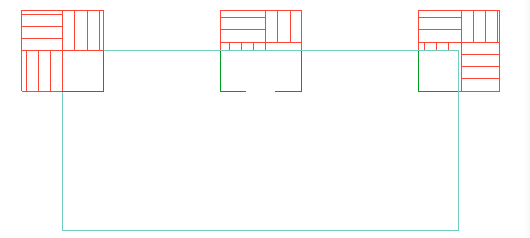

Figure 1. Column Underneath Slab: Use Hidden Line

Floor Plan Symbol

Symbol Type: Plain, Slash, X, or Crosshair

Note: For a profiled column, only the Plain and crosshair symbols are available. The crosshair symbolizes the column’s axis and will revolve along with the column cross section.

Crosshair has two additional settings: Distance From Center and Length Outside Column

Although the crosshair is a graphic symbol and not part of the model, the crosshair will be resized (together with the column itself) if you change the drawing’s scale.

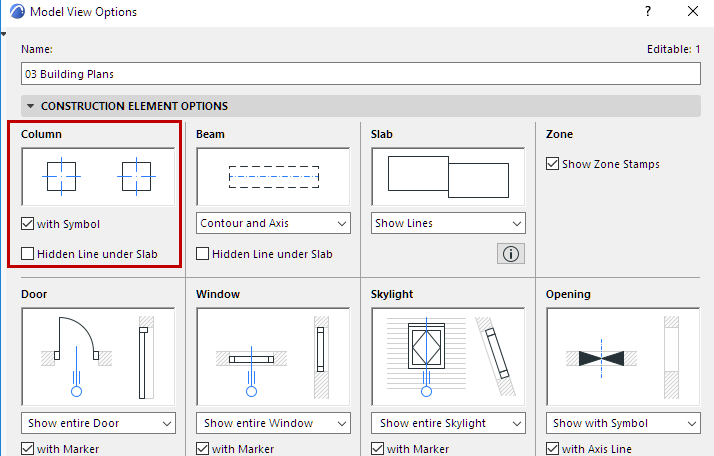

Set display (on or off) of column floor plan symbols by view at Document > Model View > Model View Options.



Cover Fills

See Assign a Cover Fill.

Figure 2. Columns with Cover Fills
Figure 3. Slanted Column with Cover Fill (Orientation: 3D Distortion)
