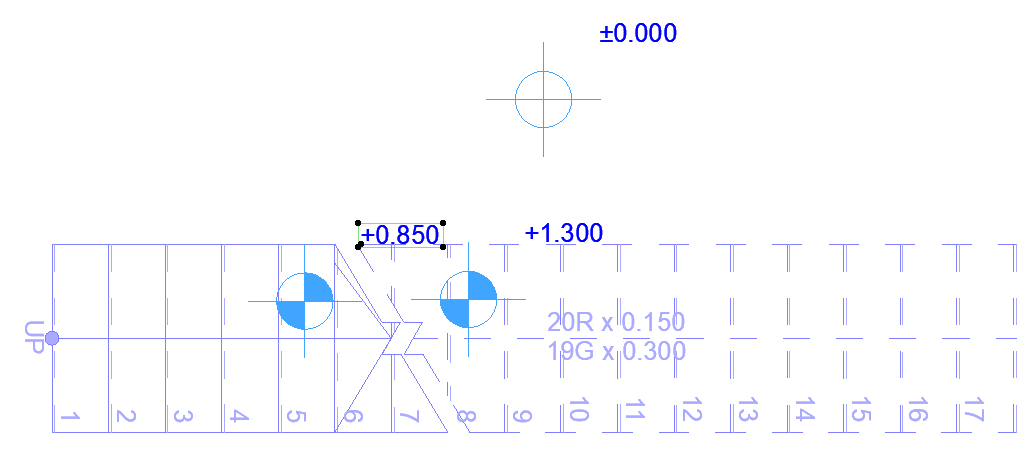

Level Dimensions on Tread, Landing, or Landing Structure

  1. Make sure the Stair symbols (Grid Going and Grid Fill) are turned on (visible) in Model View Options or Stair Settings.

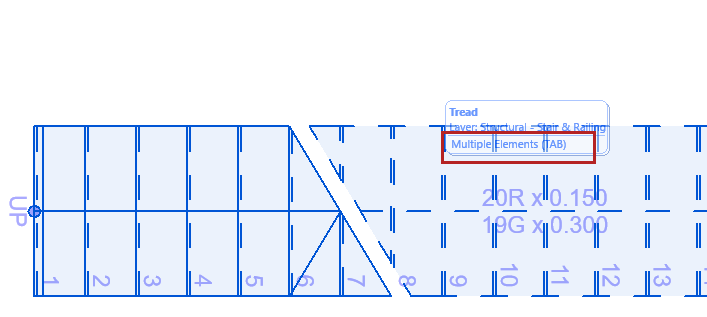

  2. Hover your cursor over the Stair. Use Tab to switch the highlight between the Stair and its components (e.g. a tread).

  3. Click to place.
