Electrical Model View Settings

Notice: Available with Archicad Collaborate or Archicad Max.

When electrical panels and electrical devices are assigned to circuits, you can visualize the circuits in the model.

To access this dialog, go to Document > Model View > Model View Options.

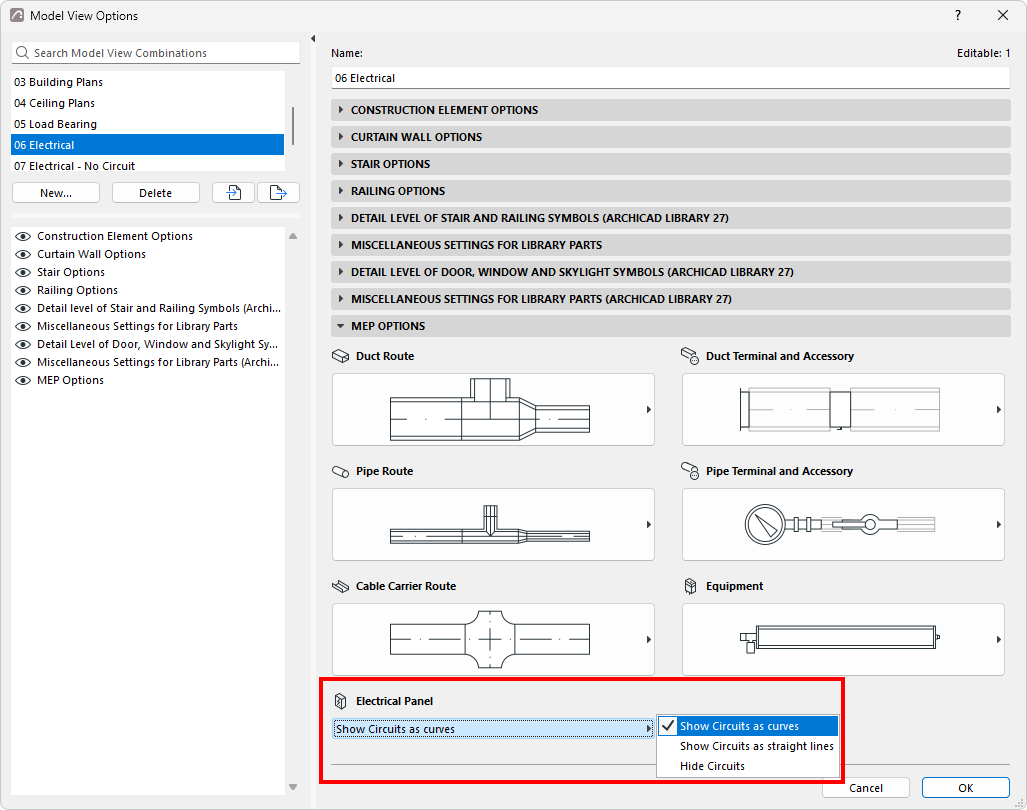

Use the Electrical Panel control, on the MEP Options panel of Model View Options, to specify how to visualize circuits on the floor plan:

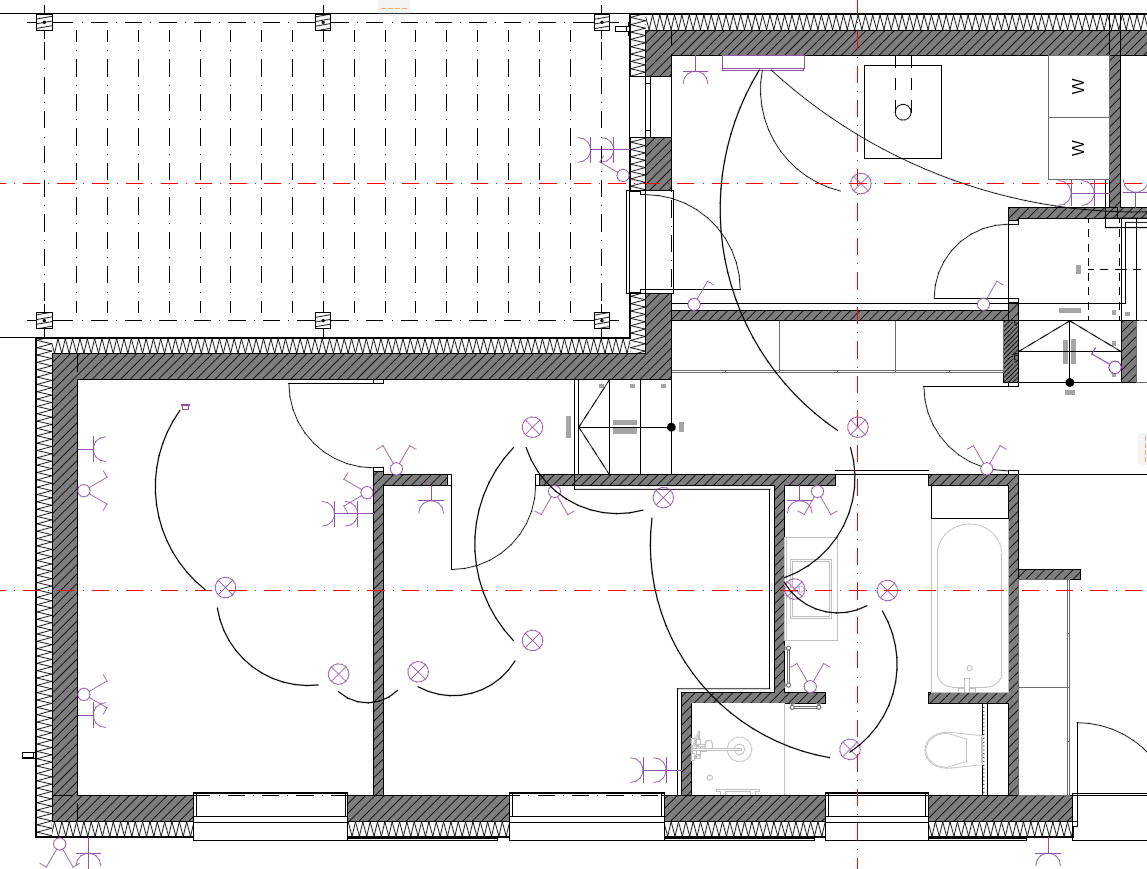

  • Show Circuits as curves
  • Show Circuits as straight lines
  • Hide Circuits

Note: The routing of Electrical circuits is automatically determined by Archicad .
