Cutback 2D Member

Cuts back all or part of the edge of a 2D Member plane, so that it can connect as needed to another Member.



CUTBACK 2D MEMBER

Cutback 2D to 1D (one to the other)




Cutback 2D to 1D (to each other)




Cutback 2D to 2D (one to the other)




Cutback 2D to 2D (to each other)

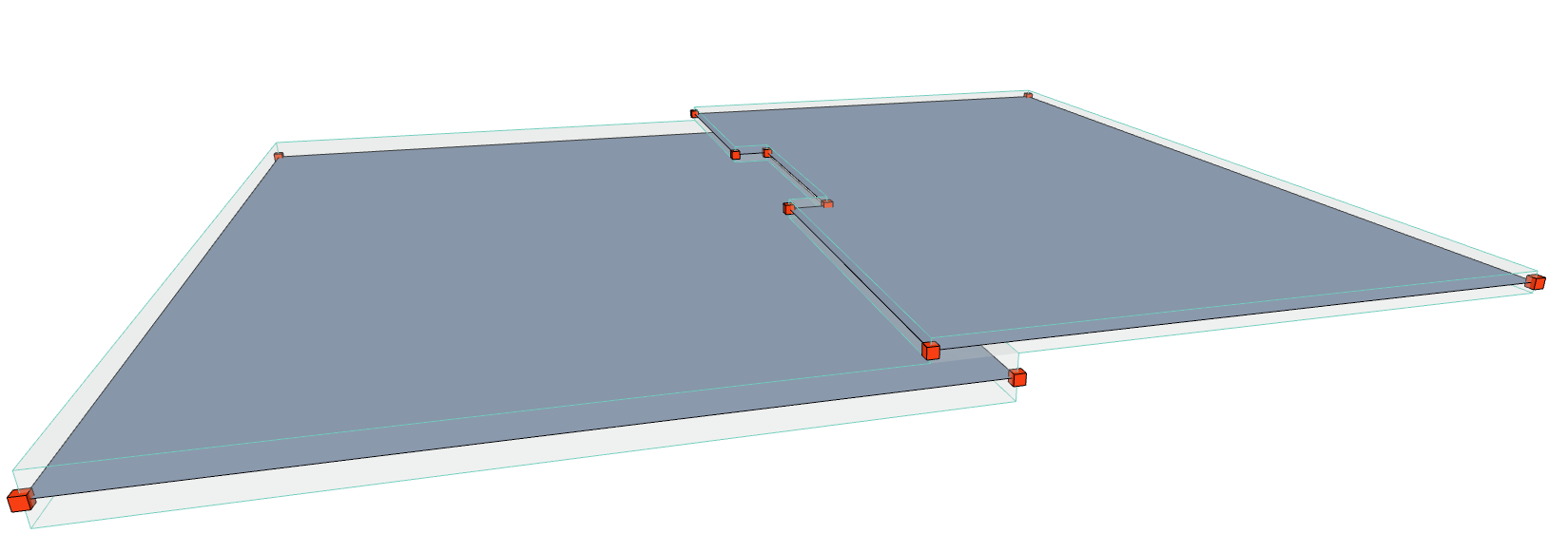

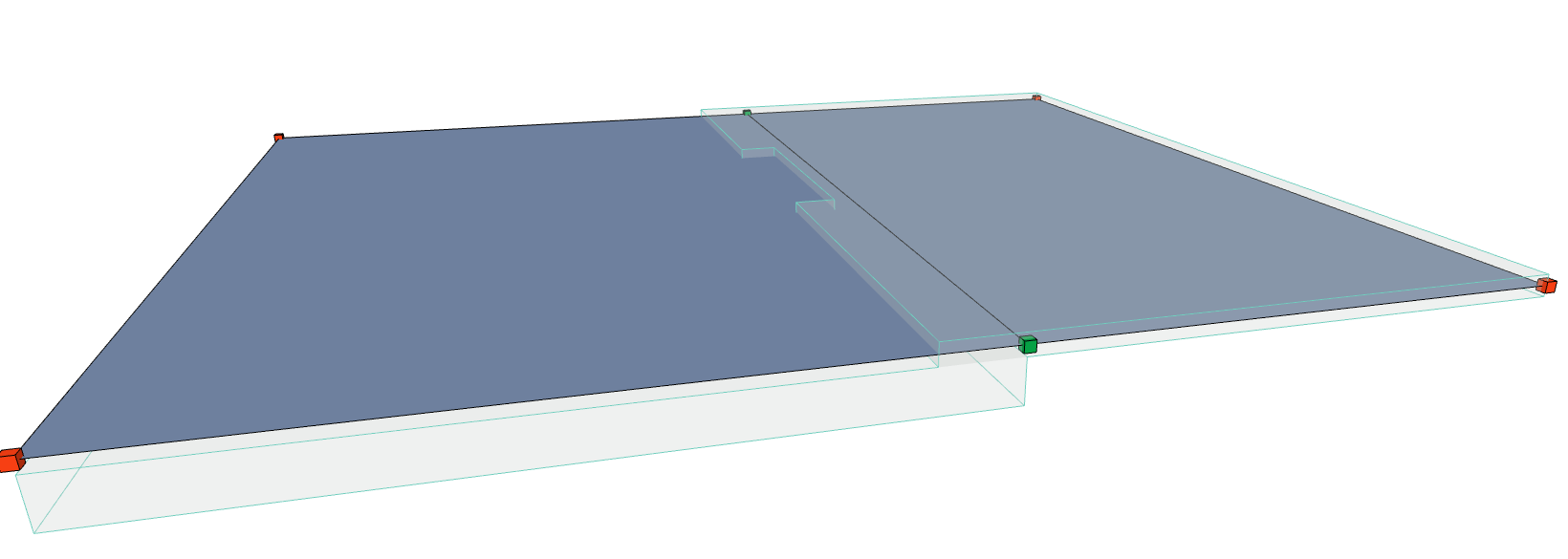

If two 2D members overlap, this Cutback adjuster also eliminates the overlap:




Partial cutback

Check this to cut back only part of the 2D Member edge. This applies if the 2D Member edge and its target are in the same plane.



Min. segment length

If Partial cutback is enabled: An edge part will be cut back only if it is at least this long.
