Offset 2D Member

Offset always occurs in one direction (one to the other): The adjusting Members will be offset to their targets; the targeted Members will remain unchanged.

A 2D Member is offset perpendicular to its own plane. This is the local Z direction.

  • For each Offset adjuster, you can set a maximum allowed offset distance (“Max. offset”). This distance is measured between unadjusted 1D Members and/or unadjusted 2D Member planes.

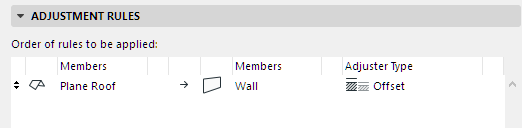

In this example, the offset adjuster enables the Roof’s 2D Member plane to connect to the 2D Member of the Wall below:

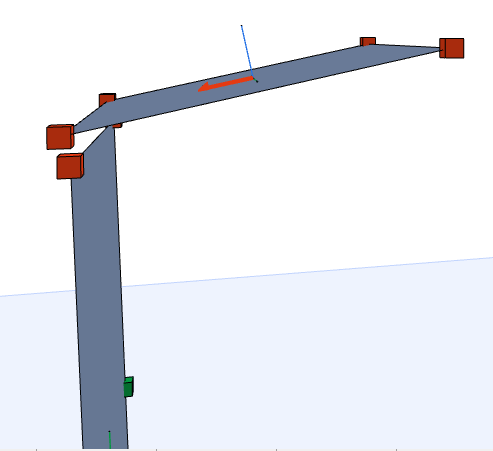

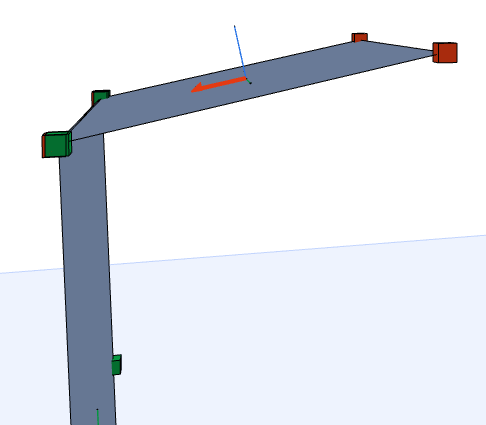

RoofOffset1.png   RoofOffset2.png

Roof Plane: Before and After Offset Adjustment

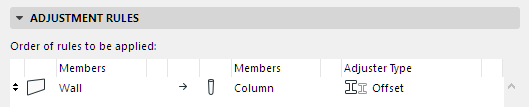

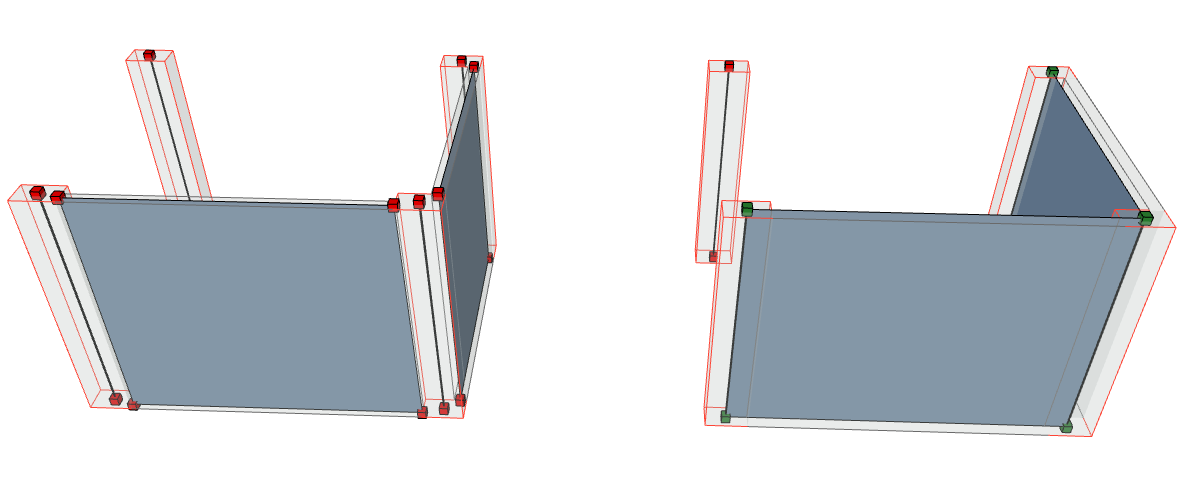

Figure 1. Offset 2D Wall Members to 1D Column



OFFSET 2D MEMBER

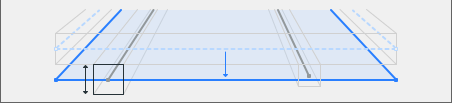

Offset 2D to 1D

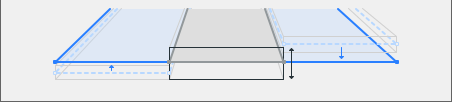

Offset 2D to 2D

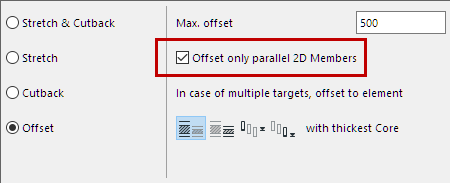

Offset only parallel 2D Members



Restrict the 2D-2D offset adjustment to take place only if the 2D Members are parallel

See also Offset Options In Case of Multiple Targets.
