Flexible MEP Systems with Distribution systems

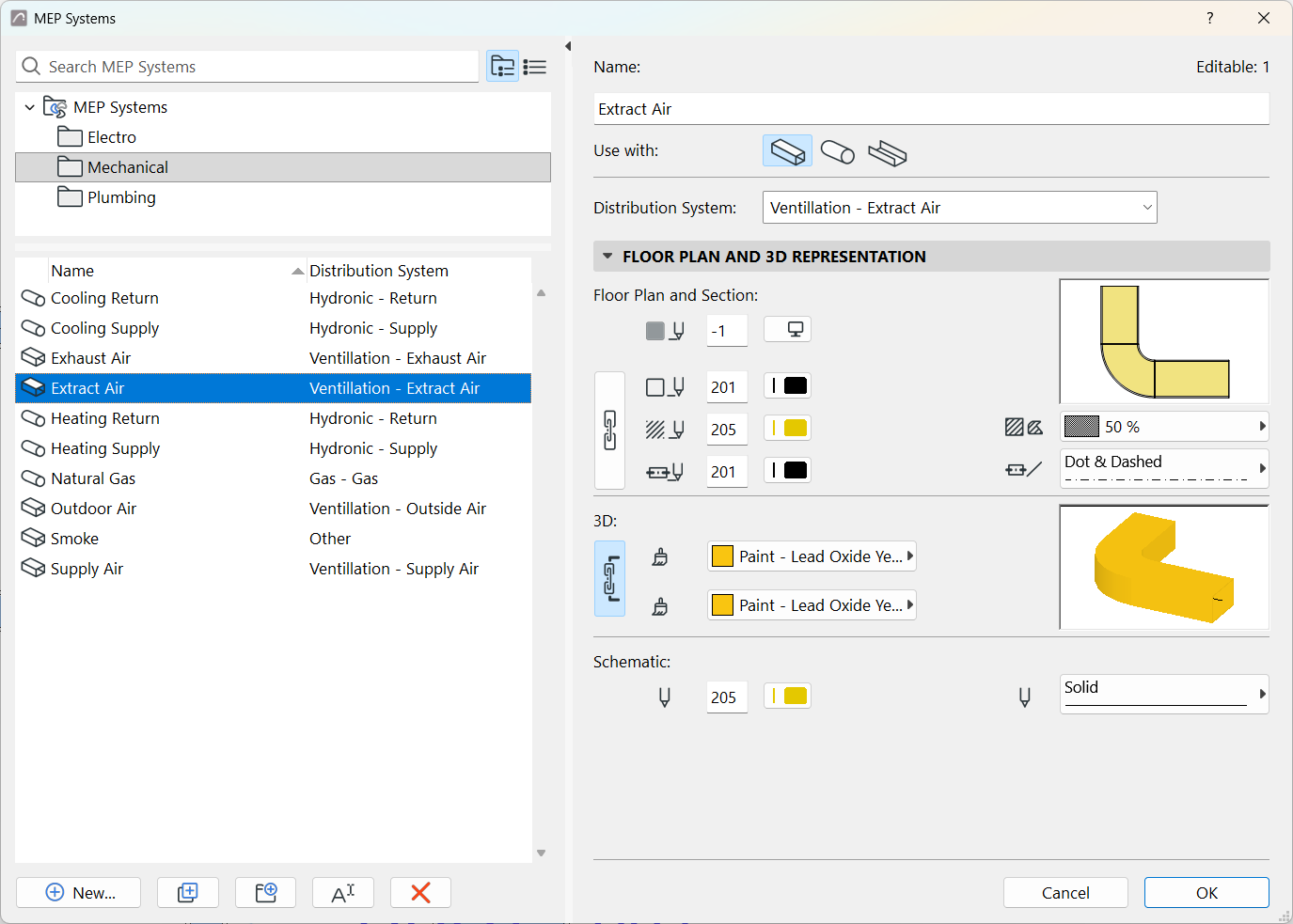

MEP Designer has a reorganized MEP Systems dialog, for easier system setup and management.

• Updated MEP Systems dialog introduces a standardized categorization of MEP system types by distribution system

• Organize MEP Systems in structured folders

• Flexible line types and color settings achieve consistent, easily readable MEP route visualization across projects

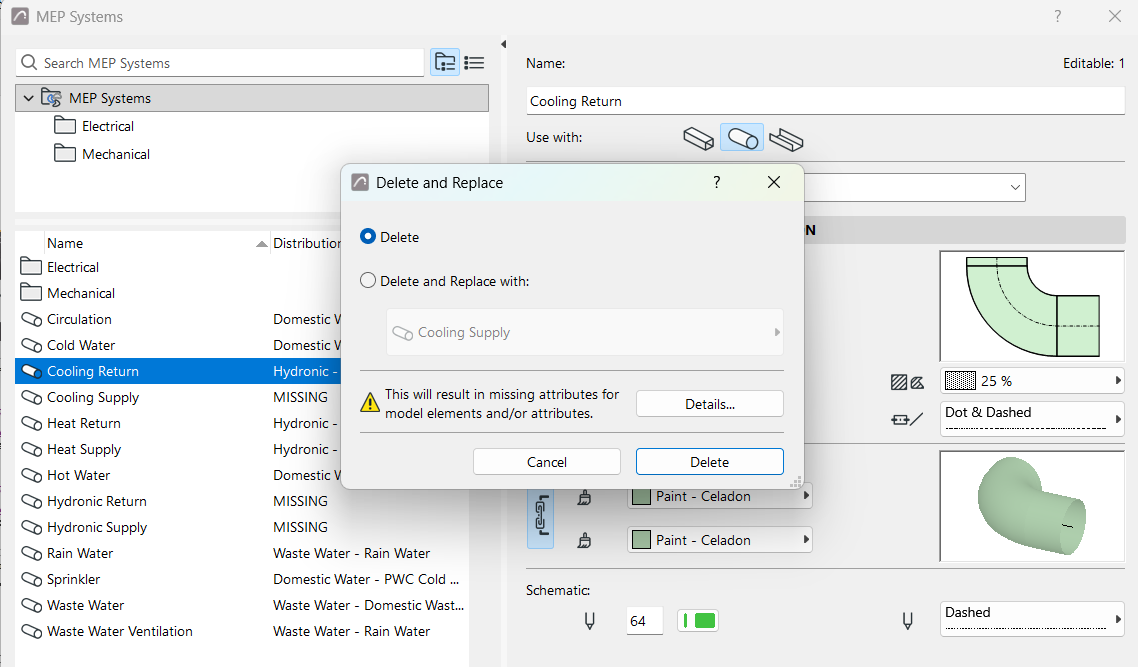

Delete/replace MEP System

See Delete attributes

If the MEP System has been assigned any elements, deleting it will result in missing attributes. To avoid this, you can replace the deleted MEP System with another one, which will then be assigned to the elements instead.
