Rotate Join Angle

In Column Settings:

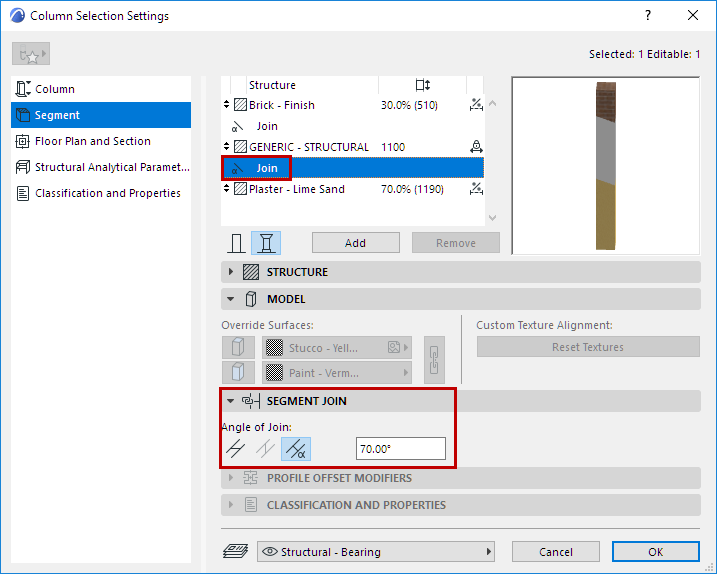

For a Join component selected in the list (at the top of Column Segment Settings): Use the Segment Join panel (below) to define its angle as horizontal, vertical or custom.

Note: Vertical Join available for slanted Column only.


In 3D Window:

Joins can be edited graphically:

  1. Select the Column in the 3D window.

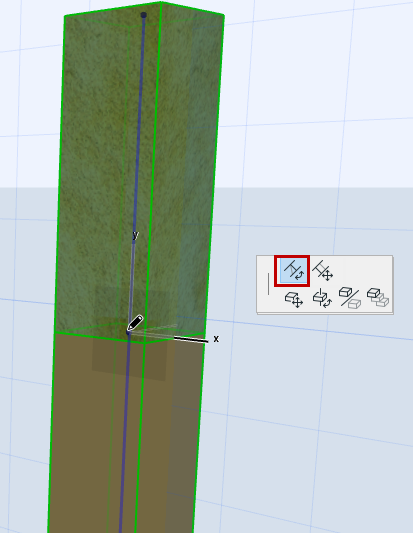

  2. Click the Join hotspot (on the Column reference line).

  3. From the pet palette, use Rotate Join Angle to adjust the Join angle
