Graphic Override Combinations

Apply Graphic Override Combination

To apply a Combination to the active view, select it from one of the following:

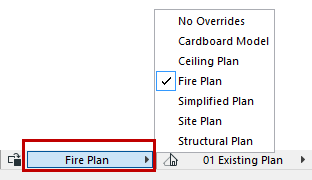

• Quick Options pop-up (at the bottom of the window)





• Graphic Overrides Combination dialog

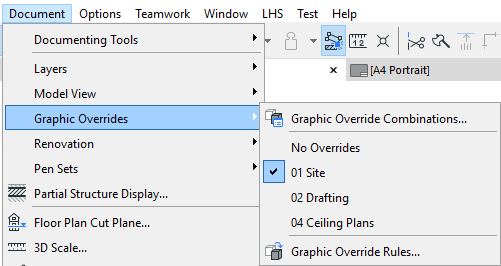

• Document > Graphic Overrides menu





Graphic Override Combinations Dialog Box

Use this dialog to create named combinations of Graphic Override Rules.

To open it, do one of the following:

• Document > Graphic Overrides > Graphic Override Combinations
• Open from Quick Options





Watch the Video

The left side lists the project’s defined Graphic Override Combinations.

The top Combination, No Overrides, is predefined and not editable.

Click New... to create a new or duplicate Combination.

Add Existing Rule

Choose from the list of defined Graphic Override Rules to add them to the current Combination:

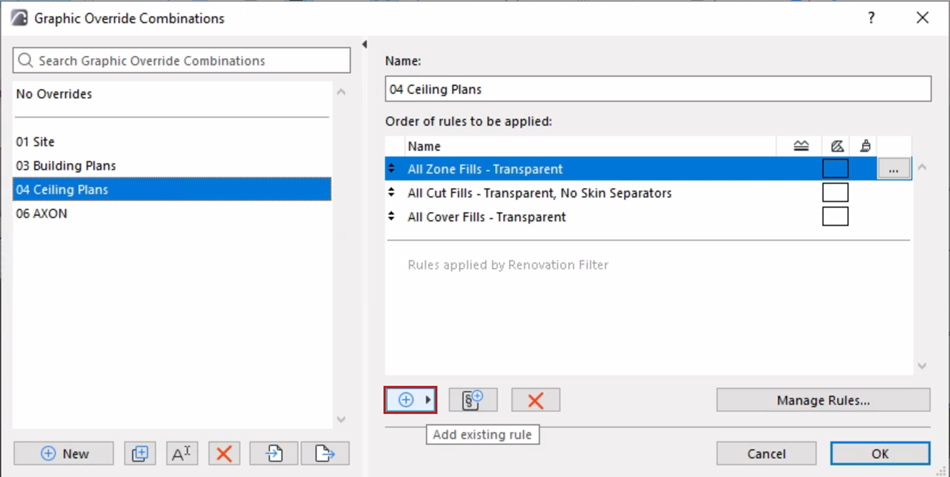

1. Click Add existing rule

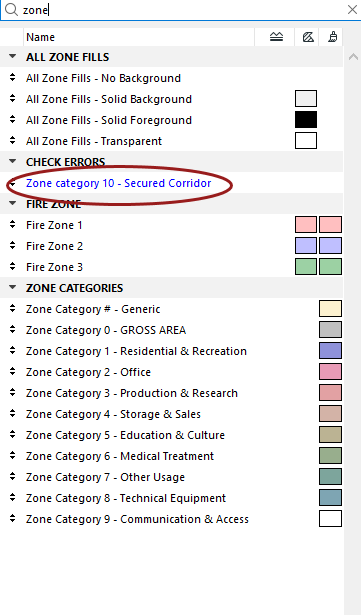

2. From the appearing list, search to find and select the rules you need.

   If the name of the rule is in blue, this means it is a new you just created (in the Rules dialog, while the Graphic Overrides Combinations dialog is open), or just imported as part of a Combination - so it is easier to find.





3. To add selected rules to current Combination, do one of the following:

• click Enter
• click Add at the bottom of the list
• on Mac: double-click

Manage Rules

To manage and edit rules, you need the Graphic Override Rules dialog.

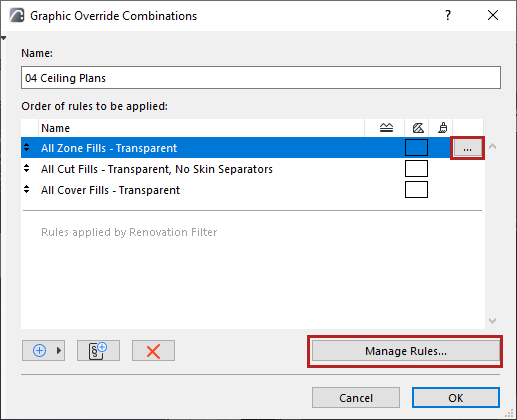

To open this from the Combination dialog, do one of the following:

• Double-click on a rule
• Select the Rule, then click Edit Rule at the end of the row
• Click Manage Rules at the bottom of the dialog box





  See Graphic Override Rules.

Add New Rule

This lets you add a new or duplicate rule to the current Combination.

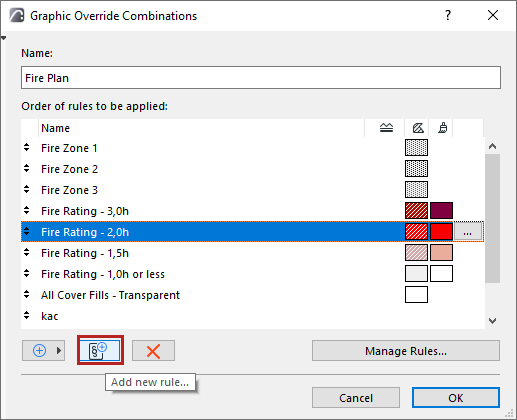

1. Click the Add new rule button





2. From the appearing dialog, choose New or Duplicate, and give the rule a name.
3. The new rule is added to the current Combination. Set up its criteria now or later.

   For details, see Graphic Override Rules.

Order of rules

Rules in a Graphic Override Combination are applied in the order that they are listed.

If two rules both apply, but can’t be applied simultaneously, then the rule that is higher up applies.

• For example: All plaster walls are blue, and all elements with a Fire Rating of 30 min are red. A wall that fits both of these rules will get the override from the rule that is higher up in the list.

To change the order, drag a rule up and down using the arrows the left edge of its row in the list.

Rules applied by Renovation Filter are at the bottom of the list (lowest priority), and this position cannot be changed.

Export/Import Graphic Override Combination

Use your Graphic Override Combinations in other projects.

1. Select one or more Graphic Override Combinations

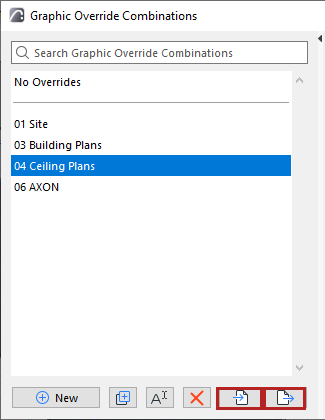

2. Use the buttons at the bottom of the Combinations dialog to Export or Import selected Combinations in XML format





Merge Rules of Imported Combination

At import: The incoming Combination and all of the rules it contains are merged with those of the current project.

If an imported rule has the same name as a rule already in the project:

• If the two rules’ contents are exactly the same, no duplicate is created
• If the two rules’ contents differ, then the imported rule is merged to the project, and its name gets a new suffix.
