Label, dimension, and list MEP elements and parameters

You can label, dimension, and list parameters of MEP route segments and equipment, as well as bends and transitions.

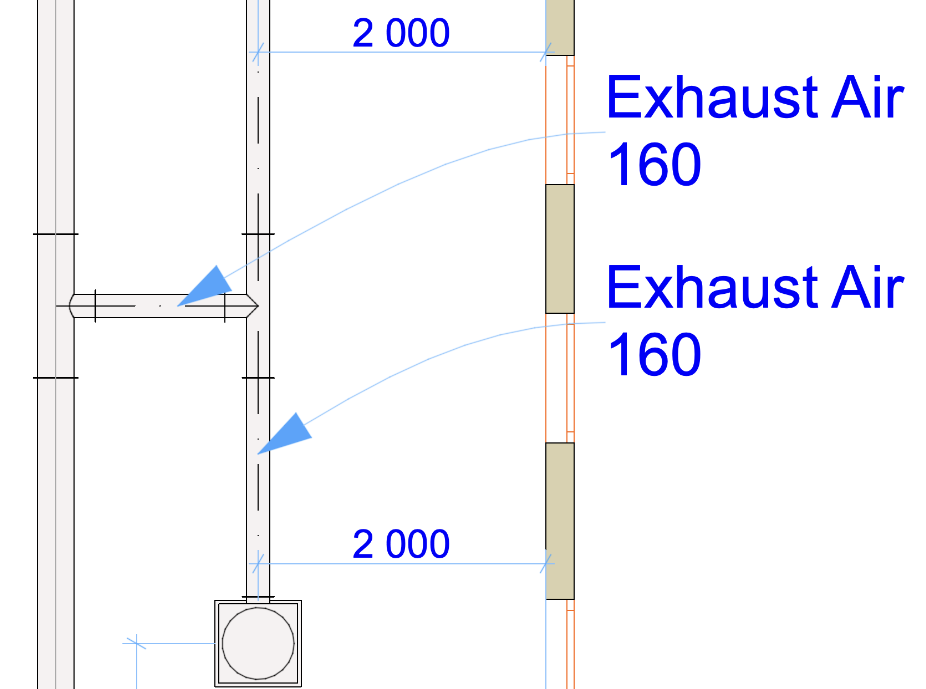

  • Previously dimensioned or labeled routes retain their label and dimension after they are split or connected to another route

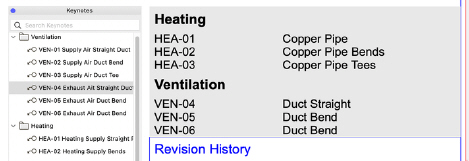

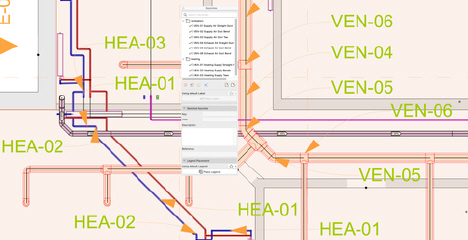

  • Place Keynotes directly on MEP elements and sub-elements and display them on the Keynote legend.
