Element Transfer Settings

Use the Element Transfer Settings dialog box (Edit > Element Settings) to customize which settings should be injected

when using Parameter Transfer (when using the syringe)

when applying Favorites


The left side of the dialog box lists the named Transfer Sets. During Parameter Transfer, and when applying a Favorite, you can choose any one of these sets.

One of the sets is tagged as the default to use when applying Favorites.

See Set as Default for Favorites.

Note: Element Transfer Settings and the named Transfer Sets are stored with the project. However, the Favorite default is a user preference and stored locally.

Open Element Transfer Settings

The dialog box is available from:

Edit > Element Settings > Element Transfer Settings

All locations where you can access Element Transfer sets

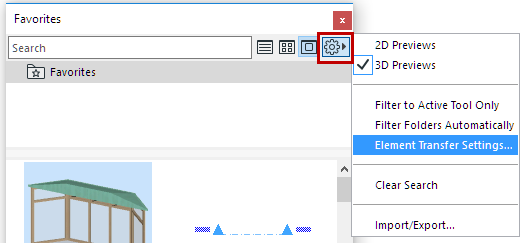

The Favorite Palette’s Additional Settings pop-up menu

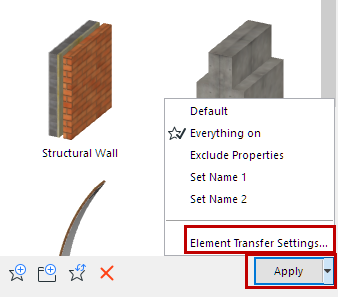

From a Favorite’s Apply button (in the Favorites interface of Tool Settings)

FavoriteTransferApply.png     ApplyFavoriteTransfer.png

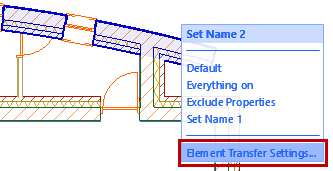

When injecting parameters with the syringe cursor.

See Pick Up/Inject Parameters.


Settings to Include for Parameter Transfer

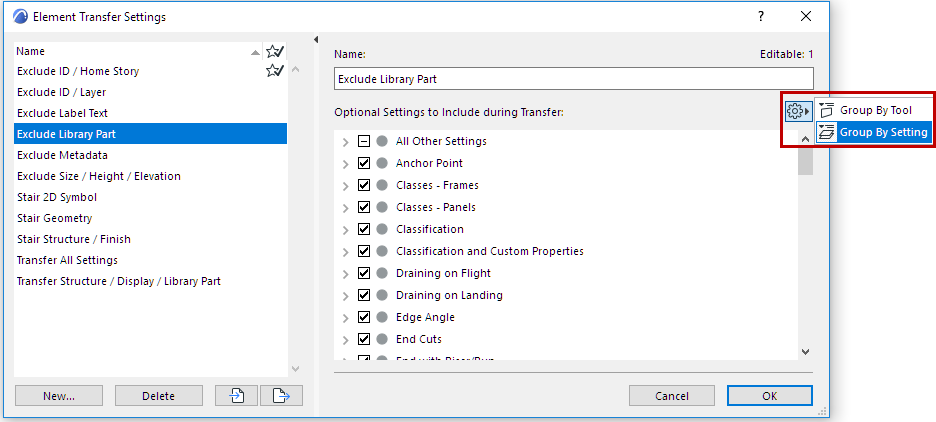

Sort the list by either Tool or by Setting:


Check the settings or groups that you want to be transferred during Element Transfer and when applying Favorites. Settings not listed here will always transfer.


Manage Sets

Import/Export

Use the Import/Export buttons at the bottom of this dialog box to transfer one or more selected sets of Element Transfer Settings from one project to another, in XML format.


New

Use the New button at the bottom to define a new set of Element Transfer Settings.

Set as Default for Favorites

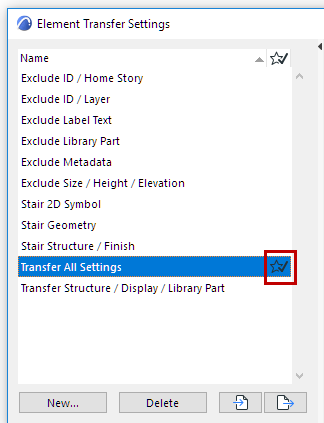

Choose one of the sets to use as the default when applying a Favorite: click in the right column next to the set you want:

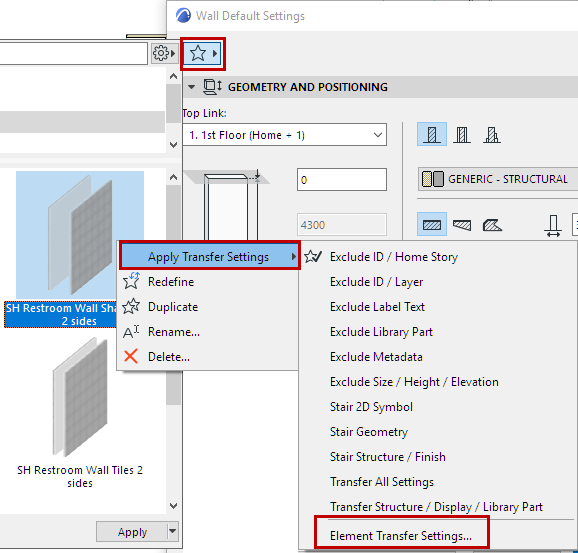

This set will be used when you apply any Favorite (double-click the Favorite, or click the Apply button). You can see this preference if you click the Apply Transfer Settings pop-up in the Favorites interface:


The Favorite default is a user preference and stored locally.

Of course, when applying a Favorite, you can click any other set in the list to apply that set of preferred parameters.
