Issue Handling

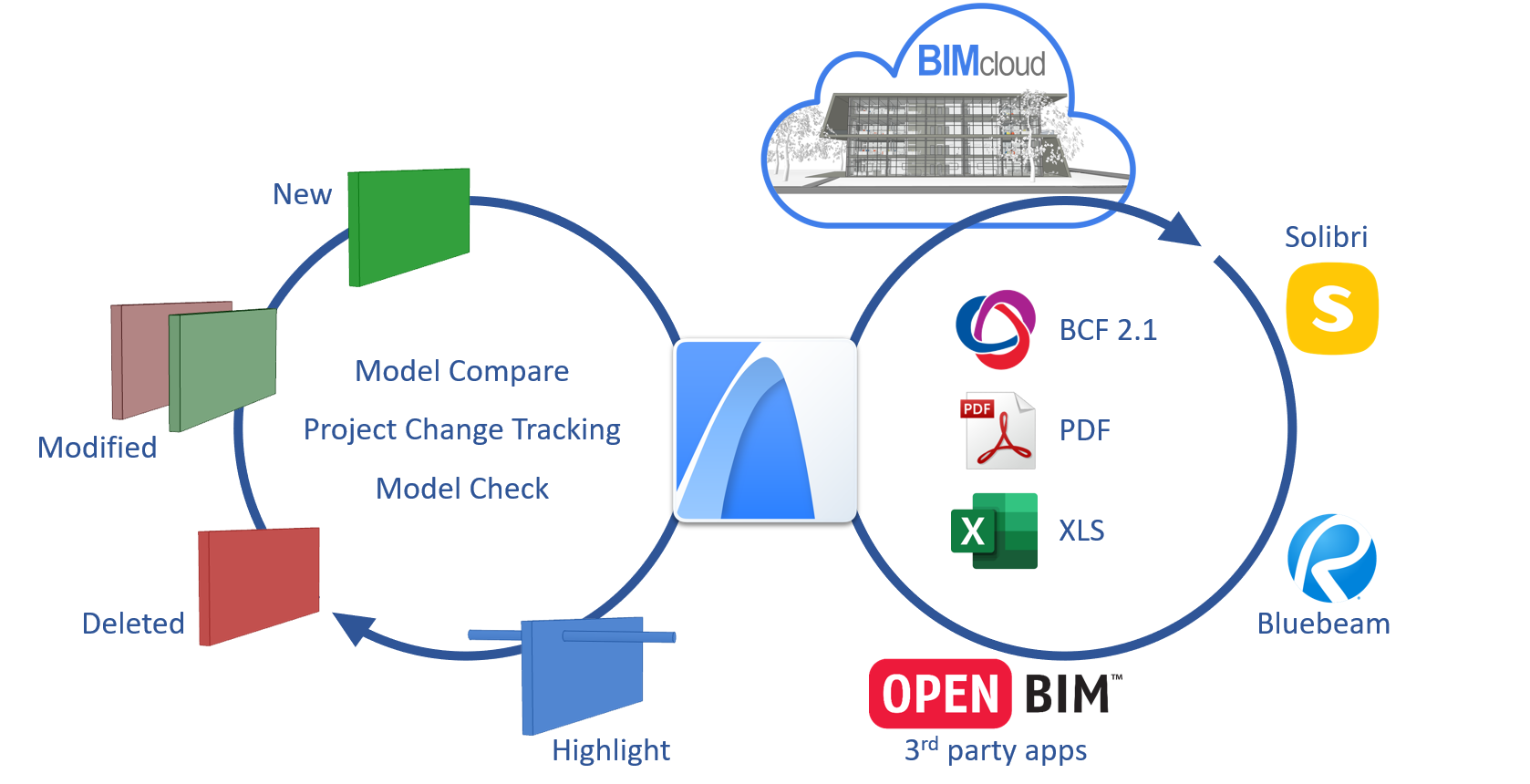

ARCHICAD’s Issue Management workflow supports an extensive collaborative workflow. It replaces the Markup tool from earlier ARCHICAD versions.

Use this workflow to:

Create Issues that highlight model elements and/or views, with optional markup

Make element-based suggestions (New, Modify, Delete)

Create Issues from the discrepancies or modifications that are  flagged by ARCHICAD (the results of Model Compare and Model Checks)

Add Comments

Define Issue details (e.g. Status, Priority, Type, Labels, Description)

Assign Issues to any user in Teamwork

Use Issue Organizer to sort through long Issue lists in flexible formats

ARCHICAD 25 supports the latest BIM Collaboration Format (BCF 2.1), as well as all earlier BCF versions.


Topics in this section:

Add Selected Elements to New Issue

Add Views to Issue

Issue Manager

Suggestion Elements in Issue Manager (Highlight, New, Modify, Delete)

Assign Issue to User

Accept Issue Element(s)

Issue Management Workflow: Example

Issue Organizer

Issue Details

Create Issue from Model Check Report

Create Issue from Model Compare Change List

Import Issues (BCF format)

Export Issues (BCF format)

Export/Import Issues Using PDF Markup
