Assign composite to wall, slab, roof or shell

1.Open the element settings (wall, slab, roof, or shell).

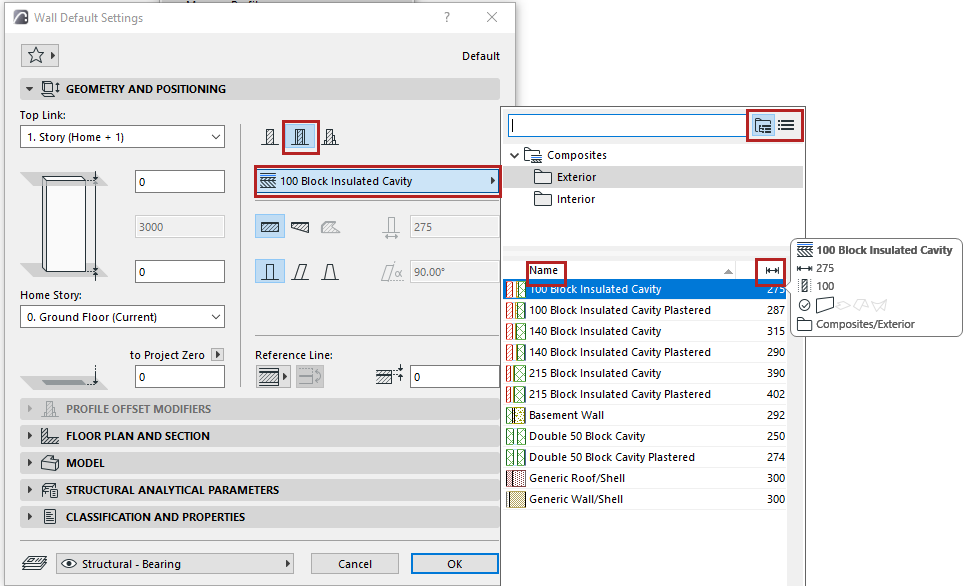

2.In the Geometry and Positioning Panel, click the “Composite” icon.

3.Use the pop-up to select a composite structure.


Note: This pop-up lists composites whose “use with” setting includes your element type: see “Use With” - define composite availability

4.The composite is applied to the currently selected element.

Note: Display of composites is affected by the view’s Partial Structure Display.
