Offset Modifiers

These controls are in Profile Manager (Options > Element Attributes).

Offset Modifiers are optional controls added to a Profile, used to offset individual profile edges at the element instance level - so you don’t have to create and manage many similar Profiles. They are available for wall, beam and column profiles. Parametric modifiers can be labeled, scheduled and used in Expression-type properties.

With Profile Editor open:

Turn on Offset Modifier visibility in the Design Layers panel

Add modifiers in the Modifiers panel

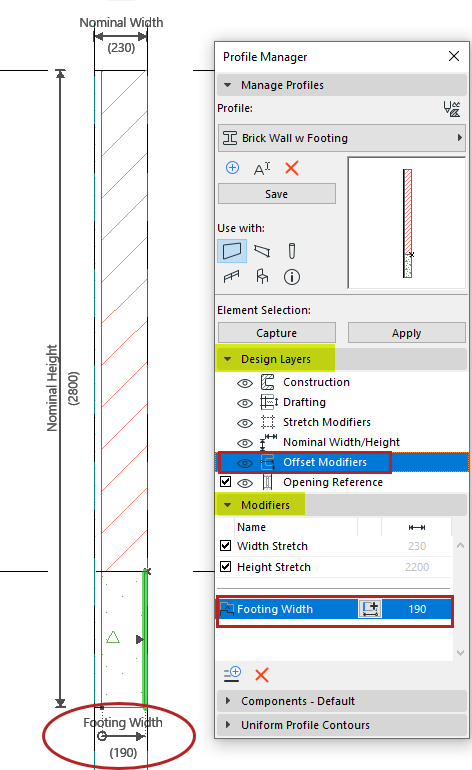

Profile Editor: Element with Offset Modifier

Edit the profile using its offset modifiers in its settings dialog, or graphically in a model window.

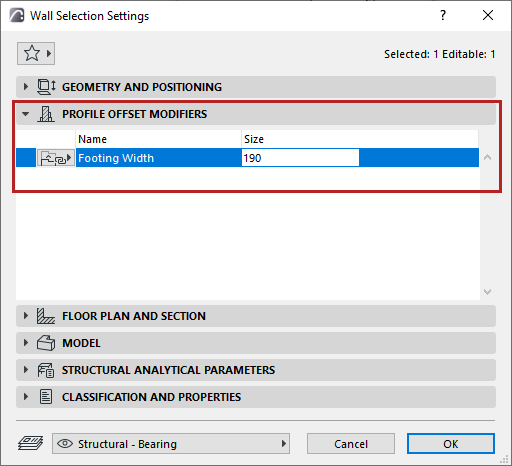

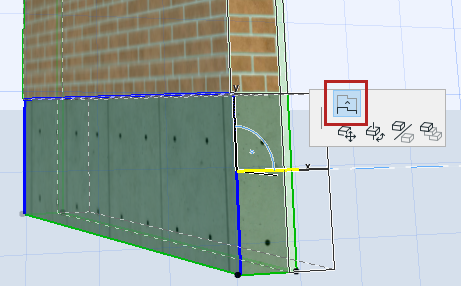

EditOffsetModifierSettings.png   EditOffsetModifer3D.png

Related Topics

Create New Offset Modifier - Example

Edit Offset Modifier

Offset Modifiers: Tips and Tricks
