Apply Profile to Element

Profile attributes are available for walls, columns, beams, railing components, or Library Parts.

Note: Profiles for Library Parts are available only for GDL elements that include a profile selection option - such as Curtain Wall and Stair components.

Apply a profile to an element in element settings or from Profile Manager.

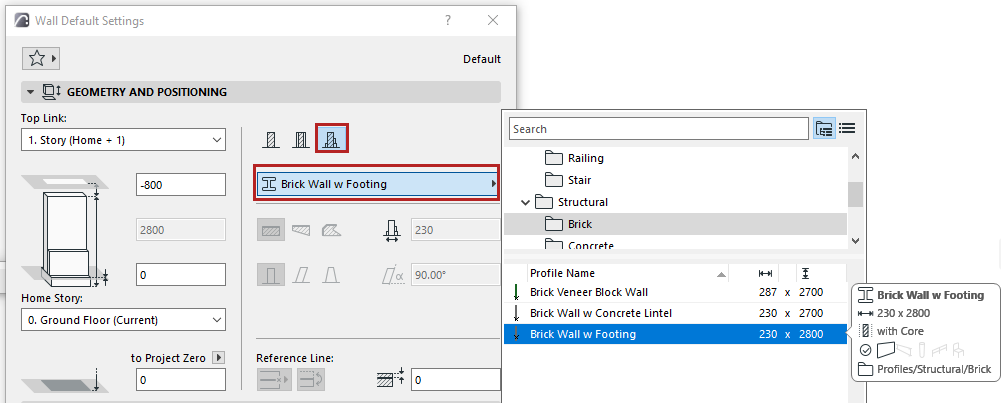

From element settings (wall, beam, column):

1.Open the element settings.

2.In the Geometry and Positioning Panel, click the “Complex Profile” icon.

3.Use the pop-up to select a profile.


Note: This pop-up lists profiles whose “use with” setting includes your element type: see “Use With” - define profile availability

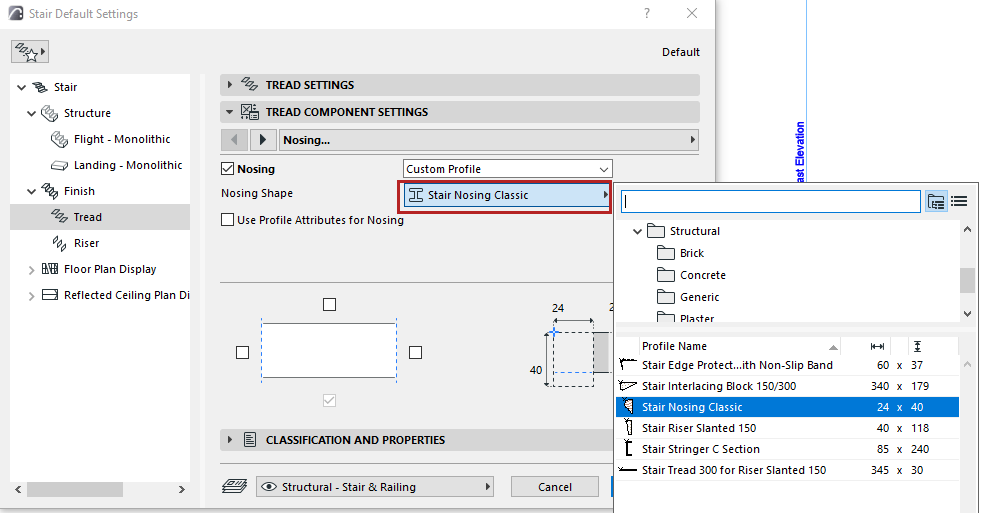

From component settings (Railing, Stair, Curtain Wall):

For example: choose a profile structure for railing components, Curtain Wall frame, Stair tread.

1.Open the element settings.

2.Use the component’s pop-up to select a profile.

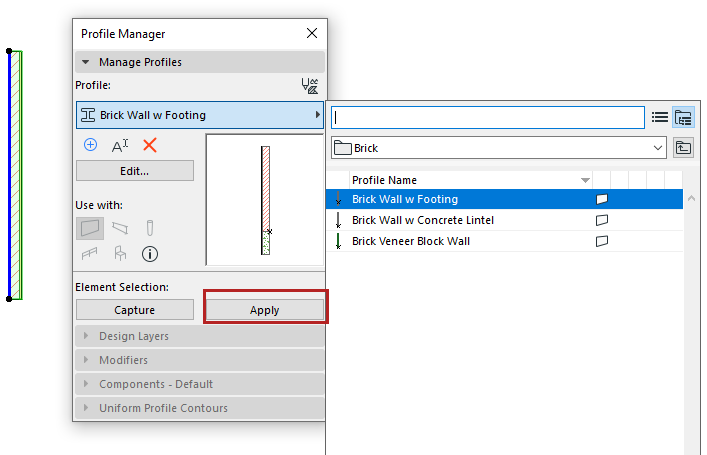

From Profile Manager

1.Select one or more element(s) in the model window.

2.In Profile Manager, select from the Choose Profile pop-up.

3.Click Apply.
