Component Assignments

Note: Part of the Library Part Maker add-on. See Library Part Maker.

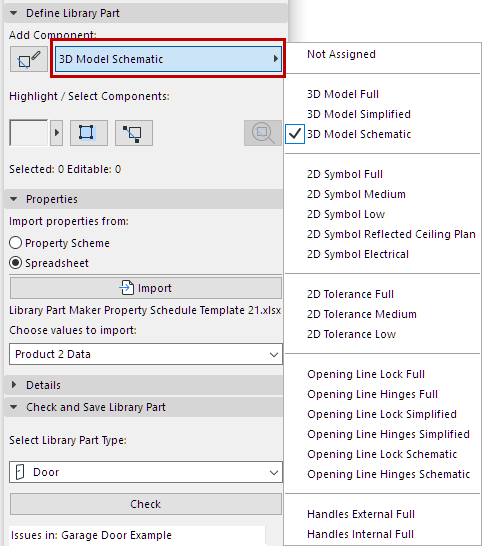

For each component, assign its Level of Detail (LOD) using the Component Type pop-up on the LPM Palette. Each type represents a 2D or 3D representation at a particular detail level:

A screenshot of a social media postDescription generated with very high confidence

See also Highlight Components by Type.

Once the Library Part is saved and placed, these assigned LOD representations can be controlled for each placed instance – either from its Settings dialog, or from Archicad’s Model View Options.

It is possible to skip the LOD definition for some components; these components have a definition of “Not Assigned”. (When you check the Library Part, you get a warning of unassigned components, but you can still save it.) When placed, such Library Parts will use only the defined representation. However, this practice is not recommended as it can lead to unexpected 2D/3D representations of Library Part in documentation and 3D model views with certain scale or Model View Options settings.

See also Highlight Unassigned Components.

Add Components Using Current Type

To create multiple components with a particular Component type:

1.Choose the desired Component type from the pop-up (e.g. 2D Symbol Full)

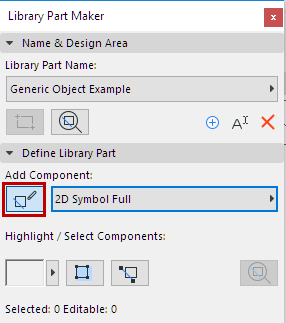

2.Click the Start/Stop Adding Components toggle button.


All the components you add now will automatically be assigned the current Component type, until you click the toggle again.

Assignments for 3D Model Components

LPM Assignment

Content shown with corresponding Model View Option (MVO) at:

Detail Level of Door, Window and Skylight Symbols

Miscellaneous Settings for Library Parts

3D Model Full

3D and Section/Elevation: Full

3D Model Simplified

3D and Section/Elevation: Simplified

3D Model Schematic

3D and Section/Elevation: Schematic

Assignments for 2D Symbol Components

LPM Assignment

Content shown with corresponding Model View Option (MVO) at: Miscellaneous Settings for Library Parts

2D Symbol Full

Floor Plan Realistic Full

2D Symbol Medium

Floor Plan Realistic Medium

2D Symbol Low

Floor Plan Realistic Low

2D Symbol Electrical

Lighting and HVAC Floor Plan Symbol: Electrical

2D Symbol Reflected Ceiling Plan

Lighting and HVAC Floor Plan Symbol: Reflected Ceiling Plan

Please note that 2D Electrical and Reflected Ceiling Plan assignments are ignored for MEP objects.
