Explicitly selected elements display selection dots (or reference points). Selection dots represent the points of the element by which you can modify the element.
Note: Elements selected by Marquee do not display selection dots.
The location of the selection dots depends on the type and the geometry of the element.
In the case of GDL Object type elements, the number of selection dots depends on the number of hotspots defined in the object.
Some GDL objects have special hotspots that enable you to graphically edit the object.
See Graphical Editing Using Editable Hotspots.
Selection Dot Variations

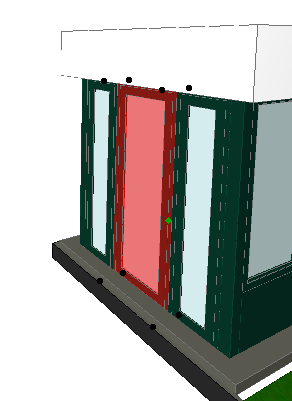

Single elements have small solid selection dots which are black by default.

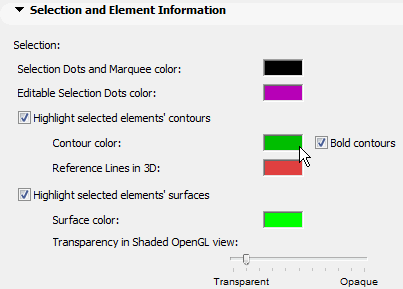

To change the color of selection dots, use the color chooser in Options > Work Environment > Selection and Element Information.

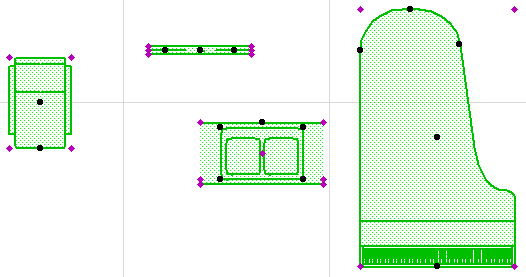

Editable selection dots are diamond-shaped and appear on GDL objects whose parameters can be edited graphically.
For more information, see Graphical Editing Using Editable Hotspots.
Grouped elements display larger circles, whose color is automatically assigned.
Elements that belong to a Hotlinked Module or an XREF are shown with hollow squares, whose color is automatically defined.
Locked elements’ selection dots appear in faded form.
Elements are locked (and display “locked” selection dots) in four cases:
•The element is placed on a locked Layer.
•The element has been explicitly locked with the Edit > Locking > Lock command.
•The elements belong to a Hotlinked Module or an XREF.
In all cases, locked elements can be selected, but they cannot be edited. (You will be informed of this if you try to edit a locked element.) You can open the settings dialog boxes of these elements, but you cannot edit their parameters.
Selected elements will be shown with a distinguishing highlight, in addition to selection dots. Selection highlight color (for both element surfaces and their contours) are configurable in Options > Work Environment > Selection and Element Information, or you can turn off selection highlights altogether.
See Selection and Element Information.
Even if you leave the Selection Highlight function on, you may want to disable it temporarily - for example, if you want to see the actual display colors of lines and fills. To suspend Selection highlight, use the Ctrl/Alt + spacebar shortcut.
Note: Surface highlights in 3D are available only when using the OpenGL 3D engine.
