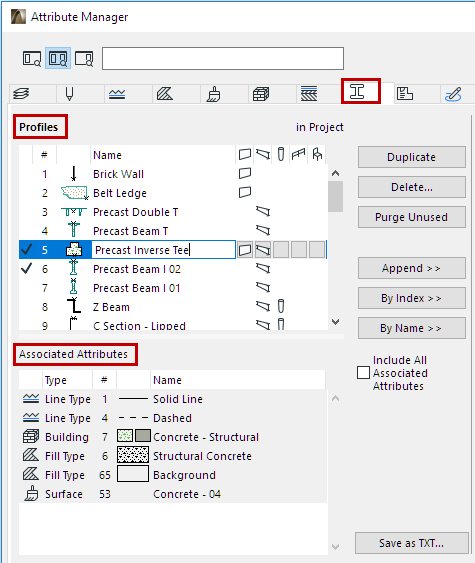

Select one or more Profiles.
Each Profile’s “Use With Element type” definition (Wall, Beam, Column, Railing, GDL object) is shown in the columns to the right, where you can edit them (multi-select available).
The Associated Attributes of each selected Profile:
•Building Materials
–Cut Fill (Fill type)
–Surface
-Vectorial hatch (Fill Type)
•Line Type
Notes:
–The project must contain at least one Profile.
–Profiles support Delete and Replace. See Delete and Replace Attributes in a Model.
See also Profile Manager.
