Intersect Single-plane Roofs

You may need to adjust Single-plane roof panes to each other.

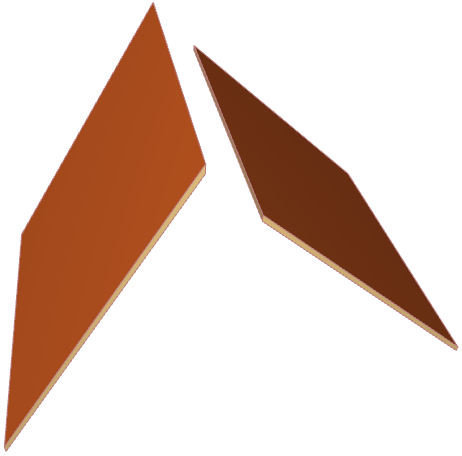

To have these two roof planes intersect:

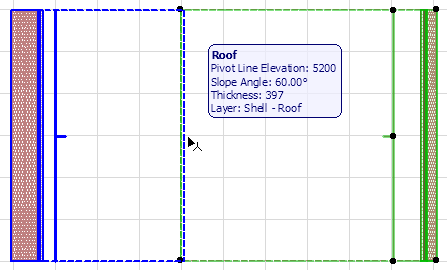

Select one of the Roofs on the Floor Plan, and Ctrl-click (Windows) or Cmd-click (Mac) the ridge line of the other.

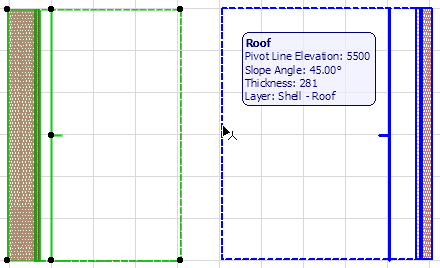

Now select the other roof plane and Ctrl-click (Windows) or Cmd-click (Mac) the ridge line of the lower one.

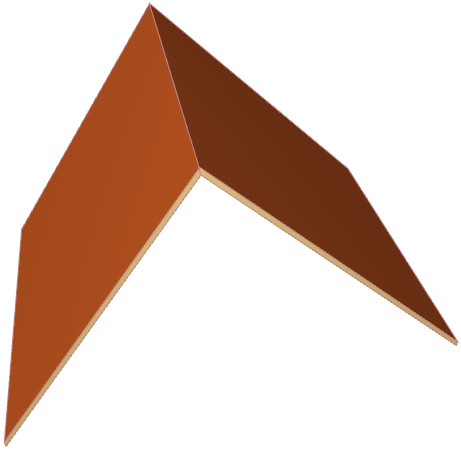

The two faces have been adjusted to each other.


See also Cropping with a Remote Roof.
