Beam Listing Parameters

Parameter

Short Description

Long Description



Beam Cross Section

Rectangular, Profiled or Rounded

Shape of the Beam's cross-section as defined in the Beam Settings dialog box.


Beam Slant Angle

Angle of an inclined Beam.

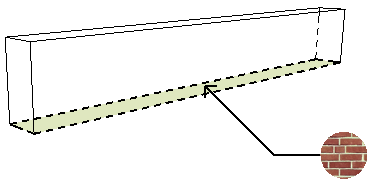

Bottom Sur­face

Name of the Surface assigned to the bottom of the Beam.

Defined in Beam Settings (via Building Material, or Override in Model Panel)

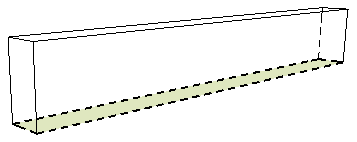

Bottom Sur­face Area

Area of the Surface of the bottom of the Beam.

Reduced by any SEO's or holes.

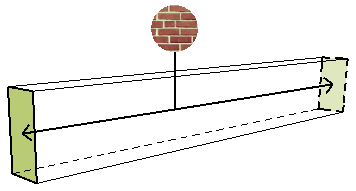

End Surface

Name of the Surface assigned to the two ends of the Beam.

Defined in Beam Settings (via Building Material, or Override in Model Panel)

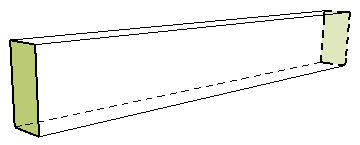

End Surface Area

Area of the Surfaces of both ends of the Beam.

Area of the Surfaces of both ends of the Beam.


Extrusion Surface

Name of the Surface assigned to the Beam extrusion.

Use with round and profiled beams, which use a single surface on all sides of the extrusion. (Same value as the Left Side Surface parameter.)

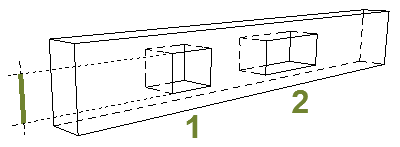

Hole Height

Height or diameter of the first-placed hole in the Beam).

Same value as "Hole Height or Diameter", on the Hole panel of Beam Tool Settings

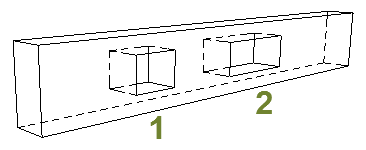

Hole Num­ber

Total number of holes in the Beam.

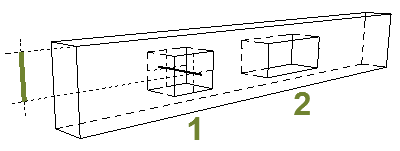

Hole Posi­tion from Reference Line

Distance of the centerpoint of the first-placed hole from the Beam Reference Line.

Same value as Position, on the Hole panel of Beam Tool Settings.


Hole Width

Width of the first-placed hole in the Beam.

Same value as "Hole Height", on the Hole panel of Beam Tool Settings.


Holes Edge Surface Area

Total edge area of all Beam holes.

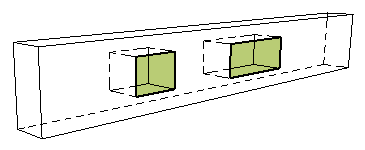

Holes Sur­face Area

Total area of the 2D Surface of all holes, as calculated on one Side of the Beam.

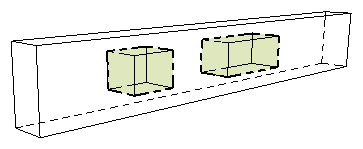

Holes Vol­ume

Total volume of all holes in the Beam.

Multiplies Beam Width by Holes Surface Area.

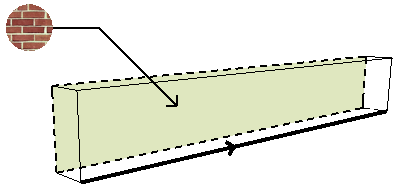

Left Side Surface

Name of the Surface assigned to the left Side of the Beam.

Defined in Beam Settings (via Building Material, or Override in Model Panel).

"Left" and "Right" are determined based on the direction of the Beam's reference axis. The axis direction is the direction in which you drag the cursor to draw the Beam.

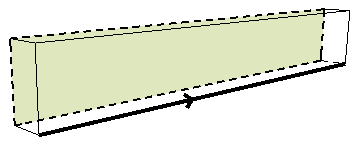

Left Side Surface Area

Area of the Surface of the left Side of the Beam.

Reduced by any SEO's or holes.

"Left" and "Right" are determined based on the direction of the Beam's reference axis. The axis direction is the direction in which you drag the cursor to draw the Beam.


Length Left

Length of the Beam on its left Side.

"Left" and "Right" are determined based on the direction of the Beam's reference axis. The axis direction is the direction in which you drag the cursor to draw the Beam.

To list the Beam's Reference Length, use the 3D Length parameter (General category).



Length Right

Length of the Beam on its right Side.

"Left" and "Right" are determined based on the direction of the Beam's reference axis. The axis direction is the direction in which you drag the cursor to draw the Beam.

To list the Beam's Reference Length, use the 3D Length parameter (General category).

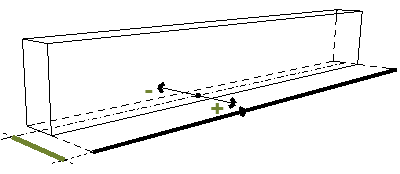

Offset

Beam offset distance from reference line.

By default, this value is zero. Entering an offset value offsets the Beam from its reference axis.


Right Side Surface

Name of the Surface assigned to the right Side of the Beam.

Defined in Beam Settings (via Building Material, or Override in Model Panel)

"Left" and "Right" are determined based on the direction of the Beam's reference axis. The axis direction is the direction in which you drag the cursor to draw the Beam.

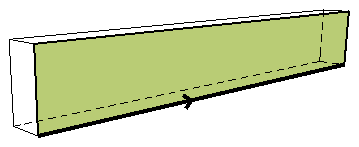

Right Side Surface Area

Area of the Surface of the right Side of the Beam.

Reduced by any SEO's or holes.

"Left" and "Right" are determined based on the direction of the Beam's reference axis. The axis direction is the direction in which you drag the cursor to draw the Beam.

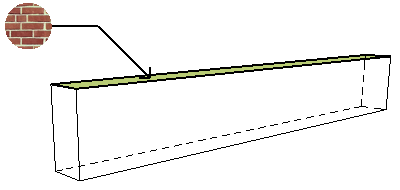

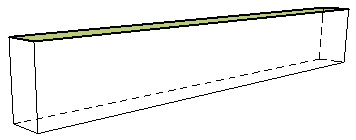

Top Surface

Name of the Surface assigned to the top of the Beam.

Defined in Beam Settings (via Building Material, or Override in Model Panel)


Top Surface Area

Area of the Surface of the top of the Beam.

Reduced by any SEO's or holes.
