Set up Tables of Dimensions for Segment, Elbow, Branch, Transition

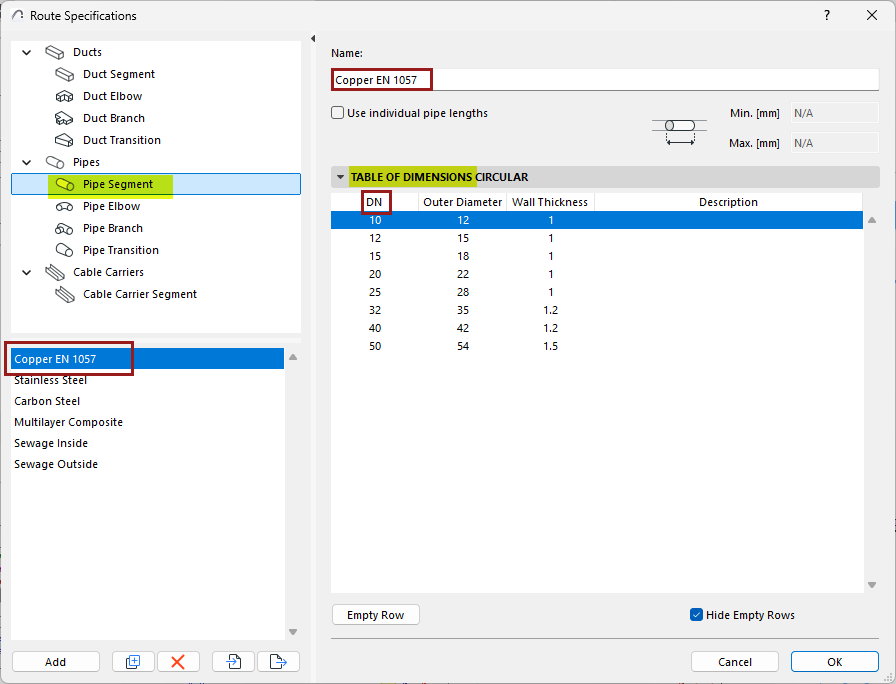

In the Route Specifications, select a MEP element type. Here, you can create or edit its preset tables of dimensions.

•The listed items (e.g. DN items) come from the Reference Set. (see Create Reference Sets for Ducts and Pipes)

•Set desired dimension values for each, as needed.

•The MEP element type can have multiple preset tables of dimensions - click Add or Duplicate to create additional tables.

•Some rows may remain empty if you don’t use that item. Check “Hide empty rows” to display only the used items.

•Duplicate and edit any table of dimensions to create new ones and edit their values. See also Empty Row: Delete DN Value for Duct or Pipe Segment)

Use individual lengths

See Use individual lengths for pipes and ducts.

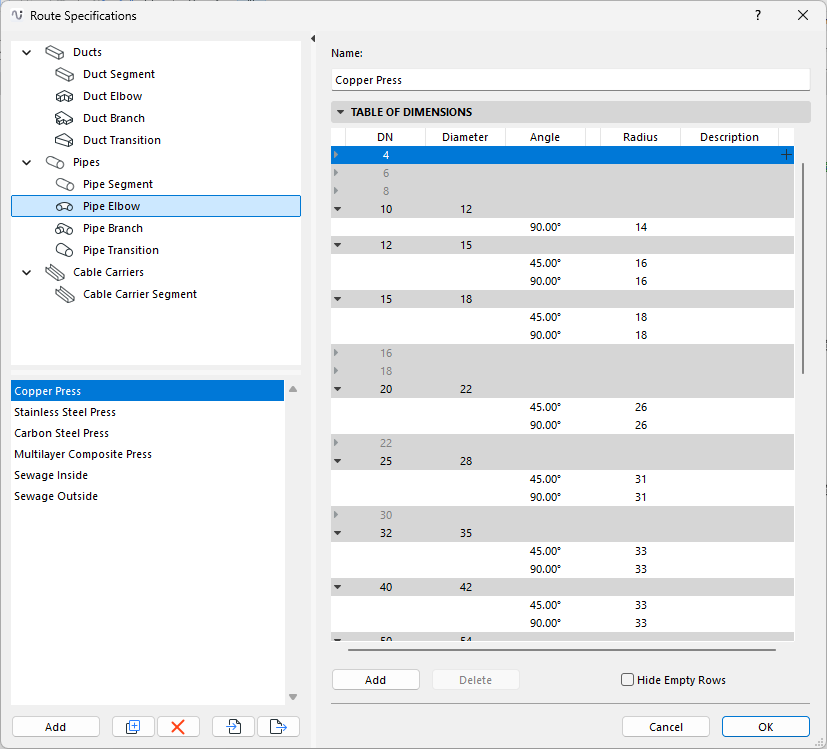

Define Angle Bends

Configure any standard angle parameters for elbows and branches of pipes or ducts.

Set Branch dimensions

Branch dimensions include multiple parts:
