Label, dimension, and list MEP elements and parameters

Available with Archicad Collaborate

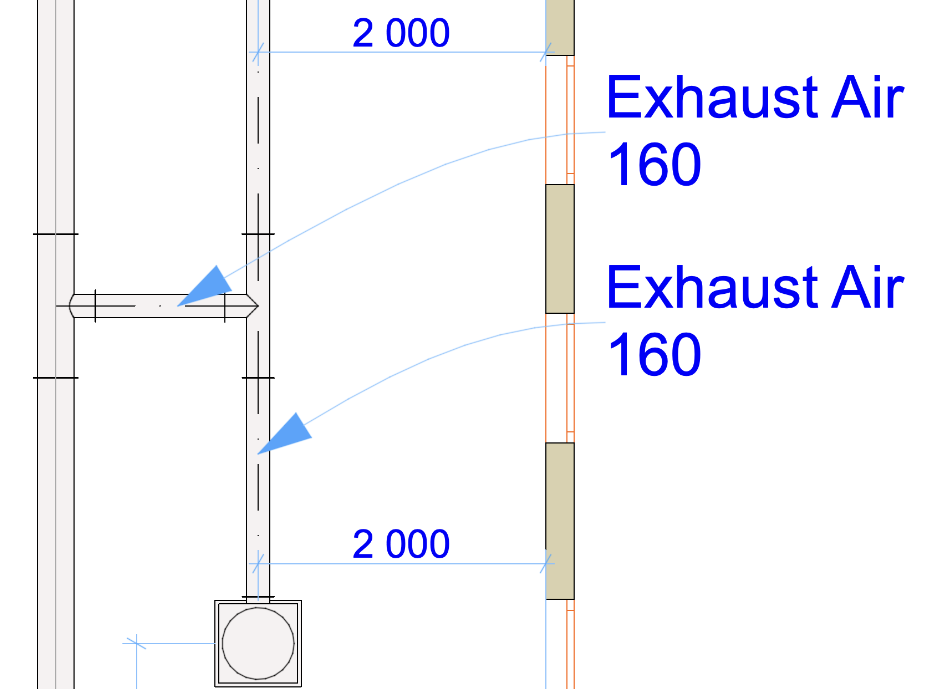

You can label, dimension, and list parameters of MEP route segments, as well as bends and transitions.

•Previously dimensioned or labeled routes retain their label and dimension after they are split or connected to another route

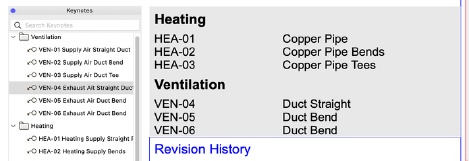

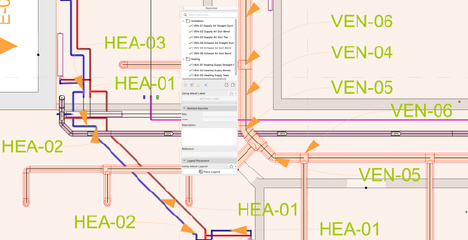

•Place Keynotes directly on MEP elements and sub-elements and display them on the Keynote legend.
