Stretch 1D Member

Stretch the 1D Member along its length (local X axis), so that it can connect to another nearby Member.

For each stretch adjuster, you can set a maximum allowed stretch distance (“Max. stretch”). This distance is measured between unadjusted 1D Member Nodes and/or unadjusted 2D Member planes.

Note: The defined tolerances are length-type values: The units specified for Length in Preferences > Working Units apply.



STRETCH 1D MEMBER TO 1D MEMBER

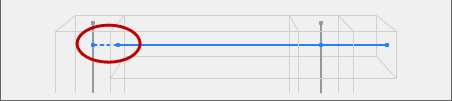

Stretch 1D to 1D (one to the other)

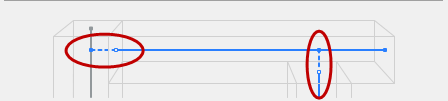

Stretch 1D to 1D (to each other)






STRETCH 1D MEMBER TO 2D MEMBER

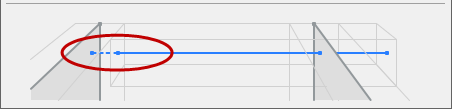

Stretch 1D to 2D (one to the other)




Stretch 1D to 2D (to each other)


Figure 1. 1D Column is stretched down to reach the 2D Slab; Slab edge is stretched to reach the side Beam

See also Adjust Connected Ends.
