Selection Dots

Type

Example

Notes

Regular




Locked


An element is locked in any of these cases:

  • It is on a locked Layer.
  • You have locked it by command (Edit > Locking > Lock)
  • It is part of a Hotlink Module or XREF.

Locked elements cannot be edited.

Grouped




Hotlink Module or XREF


Elements are locked and cannot be edited.

Editable hotspots (certain GDL Objects)


Grab the hotspot to graphically edit the object (e.g. open or close the door).

See Graphical Editing Using Editable Hotspots.

Associative Railing




Static Railing




Morph

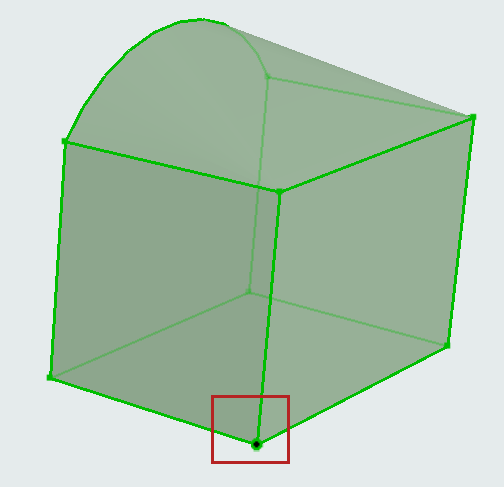

A selected Morph has only a single (black) hotspot, which represents the point of its elevation value; but all other nodes/corners are also editable.

Related topics

Selection dot colors: see Selection and Element Information

Select Morph sub-elements: see Morph Selection

MEP connection ports: see MEP-compatible Objects
