导出用IFC转换器的信息映射预设,定义了导出ARCHICAD模型到IFC时的IFC信息和属性分配。
部分属性和信息数据内带有预设的映射规则,因此您不必在属性映射中再创建一个规则。

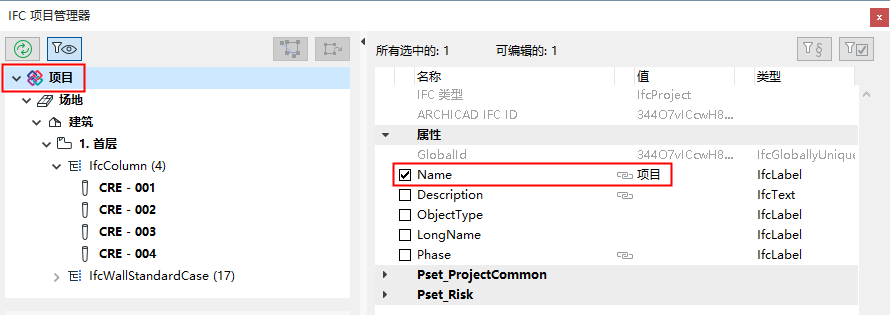

虽然这些规则并未出现在映射IFC属性对话框中,但它们仍可通过IFC项目管理器 和元素设置中的灰色链图标被看到(如果存在数值)。
这些规则在以下表格中列出。
ARCHICAD命令 |
ARCHICAD参数 |
IFC实体类型 |
IFC数据 |
IFC项目管理器 |
项目信息 |
项目名 |
IfcProject |
Attribute>Name |
可视的/ |
项目信息 |
项目描述 |
IfcProject |
Attribute>Description |
可视的/ |
项目信息 |
项目 ID |
IfcProject |
Attribute>GlobalId (控制,稍后见注释) |
- |
项目信息 |
项目状况 |
IfcProject |
Attribute>Phase |
可视的/ |
项目位置 |
项目正北方向 |
IfcProject |
Attribute>RepresentationContext>TrueNorth |
- |
项目位置 |
纬度 |
IfcSite |
Attribute>RefLatitude |
可视 |
项目位置 |
经度 |
IfcSite |
Attribute>RefLongitude |
可视 |
项目位置 |
标高 |
IfcSite |
Attribute>RefAltitude |
可视 |
项目信息 |
场地名称 |
IfcSite |
Attribute>Name |
可视的/ |
项目信息 |
场地 ID |
IfcSite |
Attribute>Global Id (控制,稍后见注释) |
- |
项目信息 |
场地描述 |
IfcSite |
Attribute>Description |
可视的/ |
项目信息 |
场地完整地址 |
IfcSite |
Attribute>SiteAddress> |
- |
项目信息 |
场地完整地址 |
|||
项目信息 |
场地完整地址 |
|||
项目信息 |
场地完整地址 |
IfcSite |
Attribute>SiteAddress>PostalBox |
- |
项目信息 |
场地完整地址 |
IfcSite |
Attribute>SiteAddress>Town |
- |
项目信息 |
场地完整地址 |
IfcSite |
Attribute>SiteAddress>Region |
- |
项目信息 |
场地完整地址 |
IfcSite |
Attribute>SiteAddress> |
- |
项目信息 |
场地完整地址 |
IfcSite |
Attribute>SiteAddress>Country |
- |
项目信息 |
场地总周长 |
IfcSite |
BaseQuantity>GrossPerimeter |
- |
项目信息 |
场地总面积 |
IfcSite |
BaseQuantity>GrossLandArea |
- |
项目信息 |
建筑名称 |
IfcBuilding |
Attribute>Name |
可视的/ |
项目信息 |
建筑描述 |
IfcBuilding |
Attribute>Description |
可视的/ |
项目信息 |
建筑 ID |
IfcBuilding & IfcBuildingStorey |
Attribute>GlobalId (控制,见稍后的注释) |
|
项目信息 |
联系人全名>联系人前缀标题 |
IfcPerson |
Attribute>PrefixTitles |
- |
项目信息 |
联系人全名>联系人名 |
IfcPerson |
Attribute>GivenName |
- |
项目信息 |
联系人全名>联系人中间名字 |
IfcPerson |
Attribute>MiddleNames |
- |
项目信息 |
联系人全名>联系人姓 |
IfcPerson |
Attribute>FamilyName |
- |
项目信息 |
联系人全名>联系人后缀标题 |
IfcPerson |
Attribute>SuffixTitles |
- |
项目信息 |
联系人 ID |
IfcPerson |
Attribute>Id |
- |
项目信息 |
联系人角色 |
IfcPerson |
Attribute>Roles |
- |
项目信息 |
联系人部门 |
IfcPerson |
Addresses>Postal> |
- |
项目信息 |
联系 公司 |
IfcOrganization |
Attribute>Name |
- |
项目信息 |
联系 公司代码 |
IfcOrganization |
Attribute>Id |
- |
项目信息 |
完整联系地址> |
IfcPerson & IfcOrganization |
Attribute>Addresses>Postal> |
- |
项目信息 |
完整联系地址> |
|||
项目信息 |
完整联系地址> |
|||
项目信息 |
完整联系地址> |
IfcPerson & IfcOrganization |
Attribute>Addresses>Postal> |
- |
项目信息 |
完整联系地址> |
IfcPerson & IfcOrganization |
Attribute>Addresses>Postal> |
- |
项目信息 |
完整联系地址> |
IfcPerson & IfcOrganization |
Attribute>Addresses>Postal> |
- |
项目信息 |
完整联系地址> |
IfcPerson & IfcOrganization |
Attribute>Addresses>Postal> |
- |
项目信息 |
完整联系地址> |
IfcPerson & IfcOrganization |
Attribute>Addresses>Postal> |
- |
项目信息 |
联系E-mail |
IfcPerson & IfcOrganization |
Attribute>Addresses>Telecom |
- |
项目信息 |
联系电话号码 |
IfcPerson & IfcOrganization |
Attribute>Addresses>Telecom |
- |
项目信息 |
联系传真 |
IfcPerson & IfcOrganization |
Attribute>Addresses>Telecom |
- |
项目信息 |
联系网站 |
IfcPerson & IfcOrganization |
Attribute>Addresses>Telecom |
- |
楼层设置 |
标高 |
IfcBuildingStorey |
Attribute>Elevation |
可视的/ |
区域设置 |
名称 |
IfcSpace |
Attribute>LongName |
可视的/ |
区域设置 |
数字 (关) |
IfcSpace |
Attribute>Name |
可视的/ |
(元素)>设置 |
类别与信息>ID |
(IFC元素类型) |
Attribute>Name |
可视的/ |
(元素)>设置 |
类别与信息>结构功能 |
(IFC元素类型) |
Pset_...Common>LoadBearing |
可视 |
(元素)>设置 |
类别与信息>位置 |
(IFC元素类型) |
Pset_...Common>IsExternal |
可视 |
(元素)>设置 |
类别与信息>更新状态 |
(IFC元素类型) |
AC_Pset_RenovationAndPhasing>Renovation Status |
可视 |
计划>(元素) |
常规>唯一的ID |
(IFC元素类型) |
Attribute>Tag |
可视的/ |
窗/门设置 |
预览和定位>宽度 |
IfcWindow / IfcDoor |
Attribute>OveralWidth |
可视 |
窗/门设置 |
预览和定位>高度 |
IfcWindow / IfcDoor |
Attribute>OverallHeight |
可视 |
(自动类型命名规则) |
|
IfcColumn |
Attribute>ObjectType |
可视的/ |
|
|
|
Pset_ColumnCommon |
可视的/ |
|
|
IfcColumnType |
Attribute>Name |
可视的/ |
(自动类型命名规则) |
|
IfcBeam |
Attribute>ObjectType |
可视的/ |
|
|
|
Pset_BeamCommon |
可视的/ |
|
|
IfcBeamType |
Attribute>Name |
可视的/ |
当一个ARCHICAD模型被导出到IFC时,每个元素被分配一个IFC元素类型。
在类型映射预设中,导出用IFC转换器中定义了类型映射:根据元素类型或分类。
下列3个图表显示了使用自动“根据元素类型”的方式生成的类型映射。
ARCHICAD |
IFCObjectType |
IFCObjectPredefinedType |
IFCTypeObjectType |
IFCTypeObjectPredefinedType |
梁 |
IFCBeam |
|
IFCBeamType |
|
列 |
IFCColumn |
|
IFCColumnType |
|
墙 |
IFCWall |
|
IFCWallType |
|
壳体 |
IFCSlab |
ROOF |
IFCSlabType |
ROOF |
屋顶 |
IFCSlab |
ROOF |
IFCSlabType |
ROOF |
板 |
IFCSlab |
FLOOR |
IFCSlabType |
FLOOR |
网面 |
IfcSite |
|
|
|
变形体 |
IFCBuildingElementProxy |
|
IFCBuildingElementProxy |
|
扶手 |
IFCRailing |
|
IFCRailingType |
|
栏杆 |
IFCMember |
|
IFCMemberType |
|
扶手 |
IFCMember |
|
IFCMemberType |
|
内部立柱 |
IFCMember |
|
IFCMemberType |
|
栏杆面板 |
IFCMember |
|
IFCMemberType |
|
栏杆立柱 |
IFCMember |
|
IFCMemberType |
|
底部横杆 |
IFCMember |
|
IFCMemberType |
|
顶部横杆 |
IFCMember |
|
IFCMemberType |
|
扶手连接 |
IFCMember |
|
IFCMemberType |
|
底部横杆连接 |
IFCMember |
|
IFCMemberType |
|
顶部横杆连接 |
IFCMember |
|
IFCMemberType |
|
扶手边界 |
IFCMember |
|
IFCMemberType |
|
底部横杆边界 |
IFCMember |
|
IFCMemberType |
|
顶部横杆边界 |
IFCMember |
|
IFCMemberType |
|
栏杆节点 |
IFCMember |
|
IFCMemberType |
|
栏杆分段 |
IFCMember |
|
IFCMemberType |
|
栏杆样式 |
IFCMember |
|
IFCMemberType |
|
楼梯 |
IFCStair |
|
|
|
踢面板 |
IFCMember |
|
IFCMemberType |
|
楼梯结构 |
IFCMember |
|
IFCMemberType |
|
踏步板 |
IFCMember |
|
IFCMemberType |
|
幕墙 |
IFCCurtainWall |
|
IFCCurtainWallType |
|
幕墙框架 |
IFCMember |
|
IFCMemberType |
|
幕墙面板 |
IFCPlate |
|
IFCPlateType |
|
幕墙附件 |
IFCDiscreteAccessory |
|
IFCDiscreteAccessoryType |
|
幕墙单元 |
IFCDiscreteAccessory |
|
IFCDiscreteAccessoryType |
|
幕墙连接点 |
IFCDiscreteAccessory |
|
IFCDiscreteAccessoryType |
|
区域 |
IFCSpace |
|
IFCSpaceType |
|
门 |
IFCDoor |
|
IFCDoorStyle |
|
天窗 |
IFCWindow |
|
IFCWindowStyle |
|
视窗(W) |
IFCWindow |
|
IFCWindowStyle |
|
对象 |
IFCFurnishingElement |
|
IFCFurnishingElementType |
|
灯 |
IFCDistributionElement |
|
IFCLightFixtureType |
|
填充 |
IFCAnnotation |
|
Undefined |
|
直线 |
IFCAnnotation |
|
Undefined |
|
样条曲线 |
IFCAnnotation |
|
Undefined |
|
多义线 |
IFCAnnotation |
|
Undefined |
|
圆 |
IFCAnnotation |
|
Undefined |
|
弧线 |
IFCAnnotation |
|
Undefined |
|
标注 |
IFCAnnotation |
|
Undefined |
|
角度标注 |
IFCAnnotation |
|
Undefined |
|
楼层标高标注 |
IFCAnnotation |
|
Undefined |
|
半径标注 |
IFCAnnotation |
|
Undefined |
|
文本 |
IFCAnnotation |
|
Undefined |
|
标签 |
IFCAnnotation |
|
Undefined |
|
ARCHICAD |
IFCObjectType |
IFCTypeObjectType |
curtainWallFrame |
IFCBuildingElementProxy |
IFCBuildingElementProxyType |
curtainWallPanel |
IFCBuildingElementProxy |
IFCBuildingElementProxyType |
stair |
IFCStair |
IFCSpatialStructureElementType |
opening |
IFCOpeningElement |
IFCMemberType |
wallOpening |
IFCOpeningElement |
IFCMemberType |
wallDoor |
IFCDoor |
IFCDoorStyle |
wallWindow |
IFCWindow |
IFCRampFlightType |
roofOpening |
IFCWindow |
IFCRampFlightType |
beam |
IFCBeam |
IFCBeamType |
column |
IFCColumn |
IFCColumnType |
covering |
IFCCovering |
IFCCoveringType |
light |
IFCFlowTerminal |
IFCFlowTerminalType |
curtainWall |
IFCCurtainWall |
IFCCurtainWallType |
discreteAccessory |
IFCDiscreteAccessory |
IFCDiscreteAccessoryType |
footing |
IFCFooting |
IFCFlowTreatmentDeviceType |
furnishing |
IFCFurnishingElement |
IFCFurnishingElementType |
railing |
IFCRailing |
IFCRailingType |
ramp |
IFCRamp |
IFCRailingType |
roof |
IFCRoof |
IFCRampFlightType |
slab |
IFCSlab |
IFCSlabType |
wall |
IFCWall |
IFCRampFlightType |
wallEnd |
IFCCovering |
IFCCoveringType |
gridElementMarker |
IFCGridAxis |
IFCFurnishingElementType |
slabOpening |
Undefined |
IFCWindowStyle |
transport |
IFCTransportElement |
IFCRampFlightType |
buildingElementProxy |
IFCBuildingElementProxy |
IFCBuildingElementProxyType |
ifcBaseObject |
IFCBuildingElementProxy |
IFCBuildingElementProxyType |
ifcBuildingElementPart |
IFCBuildingElementPart |
IFCBeamType |
ifcFooting |
IFCFooting |
IFCFlowTreatmentDeviceType |
ifcMember |
IFCMember |
IFCMemberType |
ifcPile |
IFCPile |
IFCMemberType |
ifcPlate |
IFCPlate |
IFCPlateType |
ifcRampFlight |
IFCRampFlight |
IFCRampFlightType |
ifcReinforcingBar |
IFCReinforcingBar |
IFCRampFlightType |
ifcReinforcingMesh |
IFCReinforcingMesh |
IFCRampFlightType |
IfcSite |
IPL |
IFCWindowStyle |
ifcStairFlight |
IFCStairFlight |
IFCStairFlightType |
ifcStandaloneDoor |
IFCDoor |
IFCDoorStyle |
ifcStandaloneWindow |
IFCWindow |
IFCRampFlightType |
ifcTendon |
IFCTendon |
IFCRampFlightType |
ifcTendonAnchor |
IFCTendonAnchor |
IFCRampFlightType |
ifcMechanicalFastener |
IFCMechanicalFastener |
IFCMechanicalFastenerType |
ifcFastener |
IFCFastener |
IFCFastenerType |
ifcBeamExtruded |
IFCBeam |
IFCBeamType |
ifcColumnExtruded |
IFCColumn |
IFCColumnType |
ifcDiscreteAccessoryExtruded |
IFCDiscreteAccessory |
IFCDiscreteAccessoryType |
ifcFootingExtruded |
IFCFooting |
IFCFlowTreatmentDeviceType |
ifcMemberExtruded |
IFCMember |
IFCMemberType |
ifcPileExtruded |
IFCPile |
IFCMemberType |
ifcPlateExtruded |
IFCPlate |
IFCPlateType |
ifcOpeningExtruded |
IFCOpeningElement |
IFCMemberType |
ifcDblDoorDblSwing |
IFCDoor |
IFCDoorStyle |
ifcDblDoorFolding |
IFCDoor |
IFCDoorStyle |
ifcDblDoorSliding |
IFCDoor |
IFCDoorStyle |
ifcDblDoorSnglSwing |
IFCDoor |
IFCDoorStyle |
ifcDblDoorSnglSwingOpp |
IFCDoor |
IFCDoorStyle |
ifcDoorGeneric |
IFCDoor |
IFCDoorStyle |
ifcDoorRevolving |
IFCDoor |
IFCDoorStyle |
ifcDoorRollingUp |
IFCDoor |
IFCDoorStyle |
ifcSnglDoorDblSwing |
IFCDoor |
IFCDoorStyle |
ifcSnglDoorFolding |
IFCDoor |
IFCDoorStyle |
ifcSnglDoorSliding |
IFCDoor |
IFCDoorStyle |
ifcSnglDoorSnglSwing |
IFCDoor |
IFCDoorStyle |
ifcWindowDoubleHoriz |
IFCWindow |
IFCRampFlightType |
ifcWindowsDoubleVert |
IFCWindow |
IFCRampFlightType |
ifcWindowGeneric |
IFCWindow |
IFCRampFlightType |
ifcWindowSignle |
IFCWindow |
IFCRampFlightType |
ifcWindowsTripleBot |
IFCWindow |
IFCRampFlightType |
ifcWindowTripleHoriz |
IFCWindow |
IFCRampFlightType |
ifcWindowTriple |
IFCWindow |
IFCRampFlightType |
ifcWindowTripleTop |
IFCWindow |
IFCRampFlightType |
ifcWindowTripleVert |
IFCWindow |
IFCRampFlightType |
ARCHICAD |
IFCObjectType |
IFCTypeObjectType |
IFCTypeObjectPredefinedType |
Bend |
IFCFlowFitting |
IFCDuctFittingType |
NOTDEFINED |
CableCarrierBend |
IFCFlowFitting |
IFCCableCarrierFittingType |
BEND |
CableCarrierRigidSegment |
IFCFlowSegment |
IFCCableCarrierSegmentType |
NOTDEFINED |
CableCarrierTee |
IFCFlowFitting |
IFCCableCarrierFittingType |
TEE |
CableCarrierTransition |
IFCFlowFitting |
IFCCableCarrierFittingType |
REDUCER |
CableCarrierWye |
IFCFlowFitting |
IFCCableCarrierFittingType |
TEE |
CombinationWye |
IFCFlowFitting |
IFCDuctFittingType |
NOTDEFINED |
DuctBend |
IFCFlowFitting |
IFCDuctFittingType |
BEND |
DuctEndCap |
IFCFlowFitting |
IFCDuctFittingType |
EXIT or ENTRY |
DuctFlexibleSegment |
IFCFlowSegment |
IFCDuctSegmentType |
FLEXIBLESEGMENT |
DuctObstruction |
IFCFlowFitting |
IFCDuctFittingType |
OBSTRUCTION |
DuctOffset |
IFCFlowFitting |
IFCDuctFittingType |
TRANSITION |
DuctRigidSegment |
IFCFlowSegment |
IFCDuctSegmentType |
RIGIDSEGMENT |
DuctTakeOff |
IFCFlowFitting |
IFCDuctFittingType |
JUNCTION |
DuctTee |
IFCFlowFitting |
IFCDuctFittingType |
JUNCTION |
DuctTransition |
IFCFlowFitting |
IFCDuctFittingType |
TRANSITION |
DuctVerticalObstruction |
IFCFlowFitting |
IFCDuctFittingType |
OBSTRUCTION |
DuctWye |
IFCFlowFitting |
IFCDuctFittingType |
JUNCTION |
EndCap |
IFCFlowFitting |
IFCDuctFittingType |
NOTDEFINED |
Fitting |
IFCFlowFitting |
IFCDuctFittingType |
NOTDEFINED |
FlexibleSegment |
IFCFlowSegment |
IFCDuctSegmentType |
NOTDEFINED |
FlowDevice |
IFCDistributionFlowElement |
<ifc_subtype parameter> |
<ifc_predefinedtype parameter> |
FlowEquipment |
IFCDistributionFlowElement |
<ifc_subtype parameter> |
<ifc_predefinedtype parameter> |
FlowEquipment |
IFCDistributionFlowElement |
<ifc_subtype parameter> |
<ifc_predefinedtype parameter> |
FlowTerminal |
IFCFlowTerminal |
<ifc_subtype parameter> |
<ifc_predefinedtype parameter> |
FlowTerminal |
IFCFlowTerminal |
<ifc_subtype parameter> |
<ifc_predefinedtype parameter> |
InlineFlowDevice |
IFCDistributionFlowElement |
<ifc_subtype parameter> |
<ifc_predefinedtype parameter> |
InlineFlowDevice |
IFCDistributionFlowElement |
<ifc_subtype parameter> |
<ifc_predefinedtype parameter> |
Junction |
IFCFlowFitting |
IFCDuctFittingType |
NOTDEFINED |
MEPObject |
IFCDistributionElement |
<ifc_subtype parameter> |
<ifc_predefinedtype parameter> |
Obstruction |
IFCFlowFitting |
IFCDuctFittingType |
NOTDEFINED |
Offset |
IFCFlowFitting |
IFCDuctFittingType |
NOTDEFINED |
PipeBend |
IFCFlowFitting |
IFCPipeFittingType |
BEND |
PipeCombinationWye |
IFCFlowFitting |
IFCPipeFittingType |
JUNCTION |
PipeInlineFlowDevice |
IFCDistributionFlowElement |
<ifc_subtype parameter> |
<ifc_predefinedtype parameter> |
PipeInlineFlowDevice |
IFCDistributionFlowElement |
<ifc_subtype parameter> |
<ifc_predefinedtype parameter> |
PipeRigidSegment |
IFCFlowSegment |
IFCPipeSegmentType |
RIGIDSEGMENT |
PipeSanitaryTee |
IFCFlowFitting |
IFCPipeFittingType |
JUNCTION |
PipeTakeOff |
IFCFlowFitting |
IFCPipeFittingType |
JUNCTION |
PipeTee |
IFCFlowFitting |
IFCPipeFittingType |
JUNCTION |
PipeTransition |
IFCFlowFitting |
IFCPipeFittingType |
TRANSITION |
PipeWye |
IFCFlowFitting |
IFCPipeFittingType |
JUNCTION |
RigidSegment |
IFCFlowSegment |
IFCDuctSegmentType |
NOTDEFINED |
SanitaryTee |
IFCFlowFitting |
IFCDuctFittingType |
NOTDEFINED |
Segment |
IFCFlowSegment |
IFCDuctSegmentType |
NOTDEFINED |
TakeOff |
IFCFlowFitting |
IFCDuctFittingType |
NOTDEFINED |
Tee |
IFCFlowFitting |
IFCDuctFittingType |
NOTDEFINED |
Transition |
IFCFlowFitting |
IFCDuctFittingType |
NOTDEFINED |
VerticalObstruction |
IFCFlowFitting |
IFCDuctFittingType |
NOTDEFINED |
Wye |
IFCFlowFitting |
IFCDuctFittingType |
NOTDEFINED |
<Other MEP> |
IFCDistributionElement |
<ifc_subtype parameter> |
<ifc_predefinedtype parameter> |
