Rail Component Settings (Toprail/Handrail/Rail)

This panel is available in the Settings dialogs of all Rail-type Railing components: Toprail, Handrails and Rails.

Available controls depend on the selected Rail component (e.g. Built-in, Profiled).

You must set up Component Settings for each horizontal Rail type separately (Toprail, Handrail, or Rail).

Make sure you are in the particular dialog box of the Rail component you need (e.g. to edit the Handrail, use Rail Component Settings from the Handrail Settings dialog).

Rail 2D Symbol Type

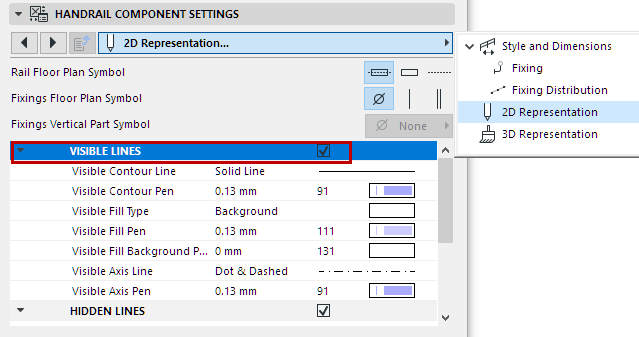

Select a Symbol Type on the 2D Representation tab page of Rail Component Settings.

Rail 2D Symbol Display

Set 2D display preferences for the Rail component, using the controls below (for Visible and Hidden parts of the Railing).


Show/Hide Rail’s 2D Symbol

By default, the visibility of Railing components is defined at Document > Model View > Model View Options > Railing Options.

Customize Rail Symbol visibility in Railing Settings. (See Railing Floor Plan Symbol Components.)

Fixing Settings

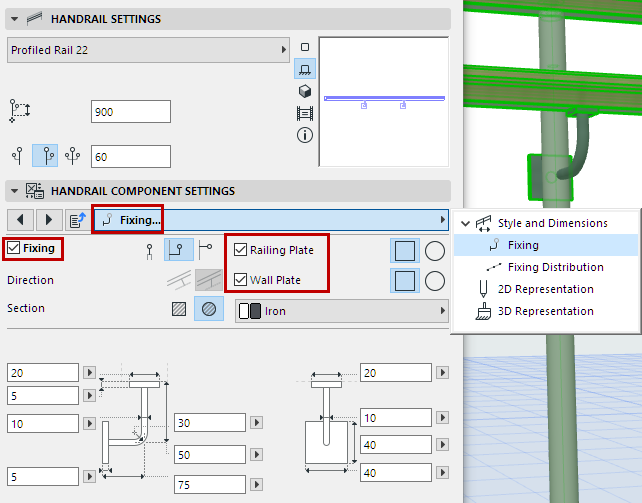

Use the Fixing tab page of Rail Component Settings to access the settings, including size and Building Material. The Profiled Rail Fixing, for example, can consist of a Wall Plate, Railing Plate or both.


Fixing Distribution

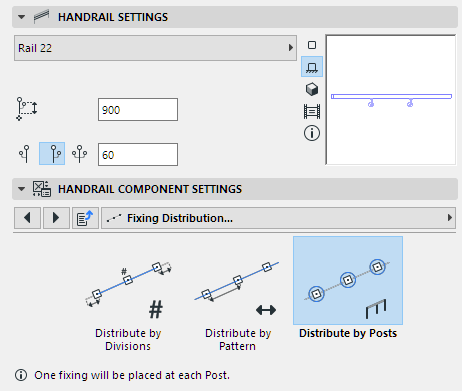

Use the Fixing Distribution tab page of Rail Component Settings to define how to place the Fixings along the Rail.

Choose a Distribution method:

Distribute by Posts: Place a Fixing at each Post and Inner Post.

FixingDistribution.png  PostInnerPost3D.png

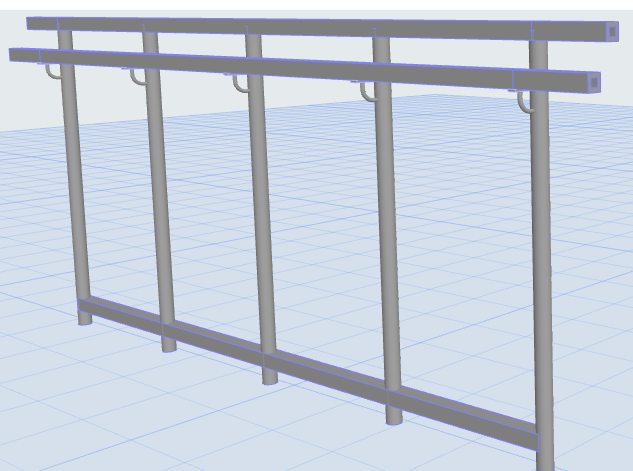

Handrail Fixings at Posts and Inner Posts

Distribute by Divisions

In the Number of Divisions field, enter the total number of Fixings to place along the Segment length.

Distance from Ends refers to the gap between the first/last Fixing and the end of the Rail.

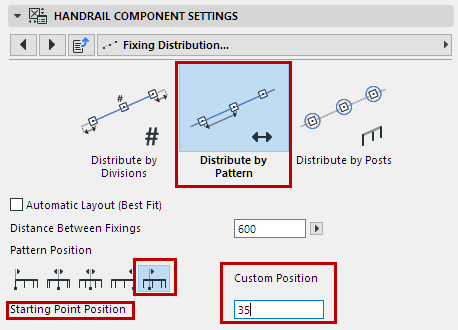

Distribute by Pattern

Distribute the fixings evenly within the Pattern Length you specify

Check Automatic Layout (best fit), or

Choose a startpoint for distributing the Fixings.

-Segment Start or Segment End

-Center of Segment: One Fixing is placed in the center, and then rest distributed, at set intervals, on each side.

-Center of Segment with Best Fit: Fixings are distributed at the set interval, so as to be symmetrical over the length of the Segment.

-Custom Position: Enter the startpoint (distance from Segment start)

LayoutBySpacing.png LayoutBySpacing3D.png

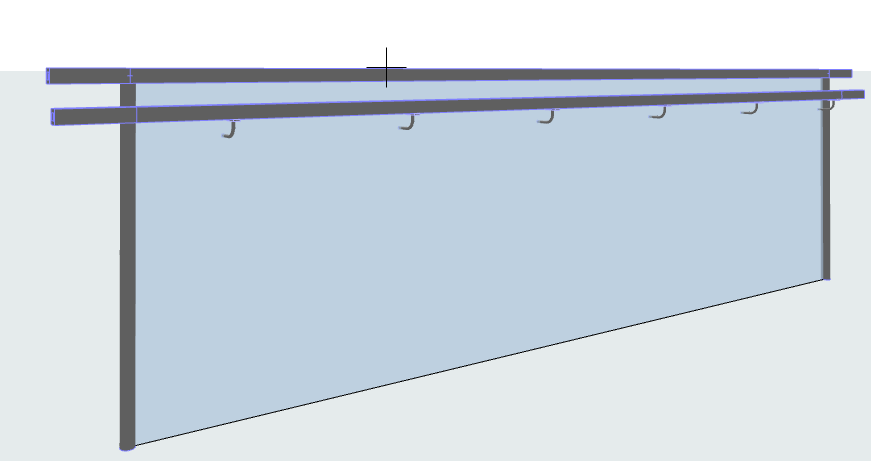

Evenly Spaced Handrail Fixings: Start from Custom Position
