Map Archicad Building Material (By Name)

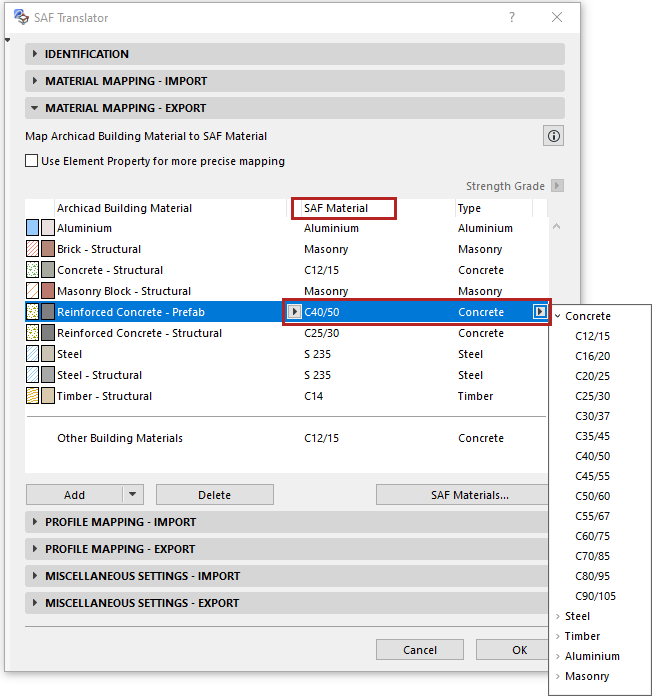

  1. For each listed Archicad Building Material, choose a corresponding SAF Material definition.
    • In the pop-up, available SAF Materials are listed according to their predefined SAF Material Types (e.g. Concrete, Steel...)

    • If you don’t find the material you need, add more materials by clicking the SAF Materials button.

      See Add More SAF Materials to Mapping List (Export to SAF) .

  2. To map an additional Archicad Building Material, do one of the following:

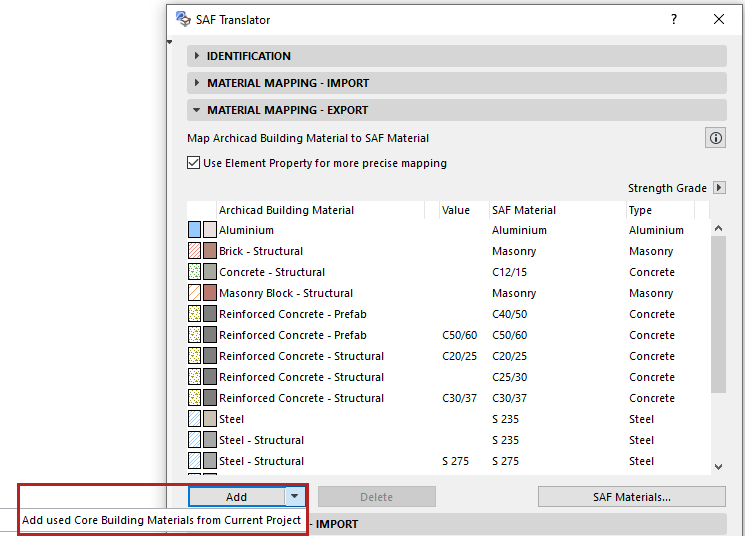

    • From the Add button, click Add used Core Building Materials from Current Project, or
    • Click Add, then choose from the Archicad project’s list of Building Materials
